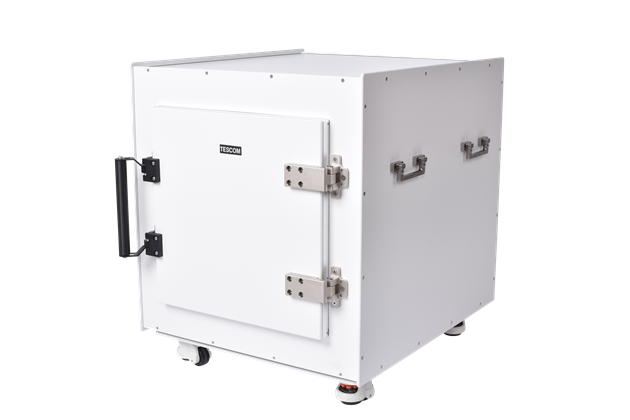

◈ Mechanical Specifications
Basic RF Connectors without module: two (2), N(f) outside to SMA(f) inside

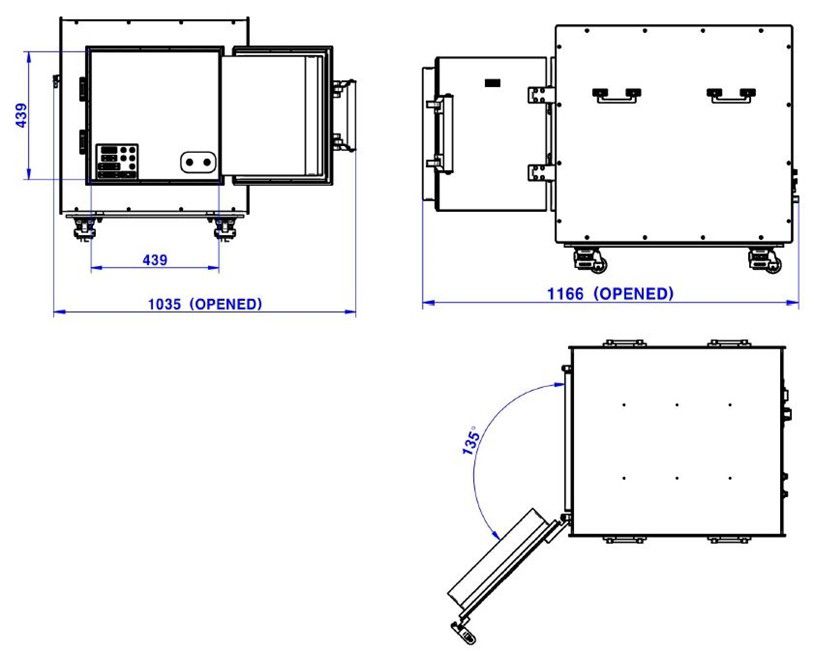

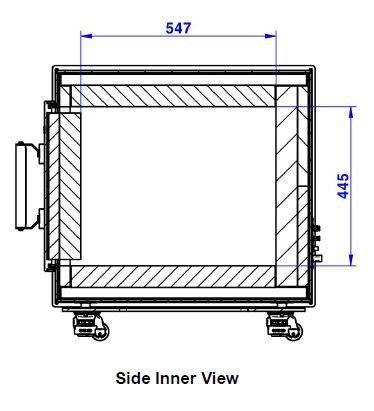

Dimension
- Inside : 445(W) x 547(D) x 445(H) mm
- Outside : 690(W) x 856(D) x 768(H) mm
- Door : 439(W) x 439(H) mm
Weight : 90 kg
Packing
- Size : 896 (W) x 1016(D) x 876(H) mm
- Weight : Approx.105 kg
- The size or weight of a package may vary on how to pack a package.
Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectiveness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 70 dB
Datasheet
- Features
Reliable High RF Shielding up to 6 GHz
High Performance RF+Audio Multi-Absorber
Specifically designed for various types of Large Device
EMI filters on all Data ports
Easy Opening/Closing of Door
Customizable Data connections
◈ Typical Sound Isolation

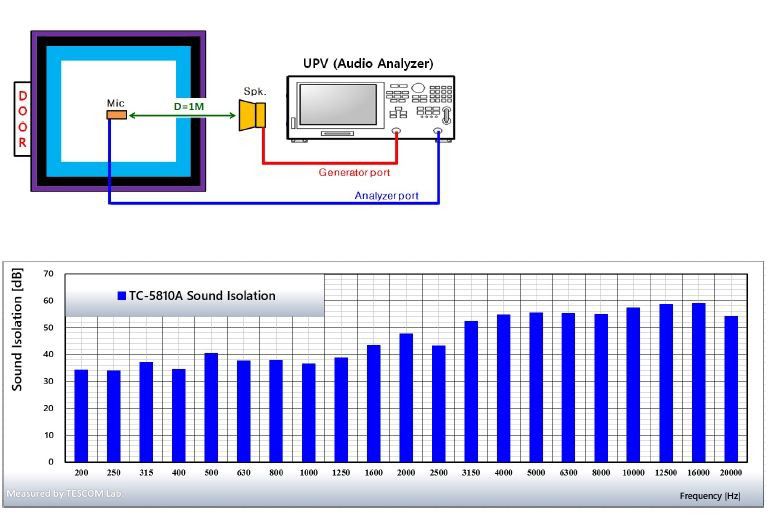

The sound isolation below is measured when the blank panel is mounted
◈ Absorption Performance
- Audio Absorber Performance (ISO 10534-2 : Impedance Tube Method)

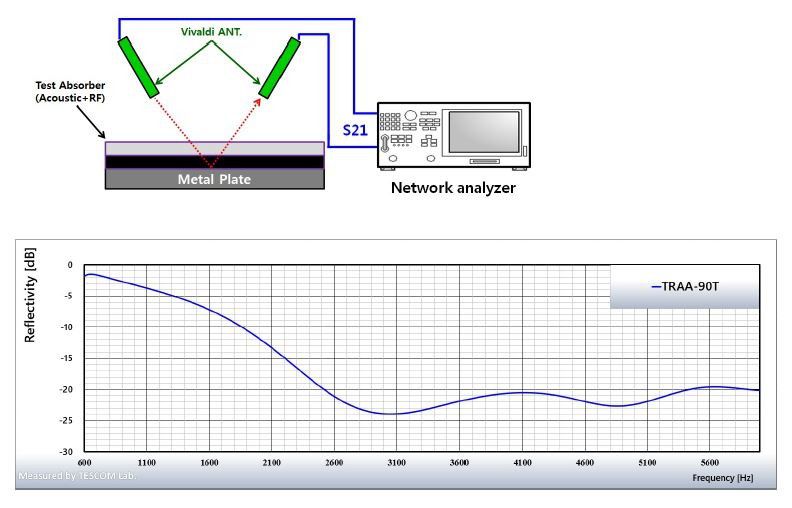

- RF Absorber Performance (NRL Arch Method)

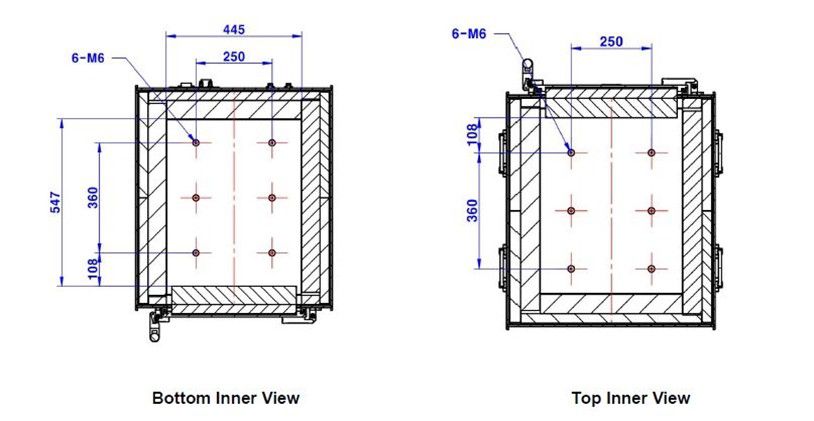

◈ Dimensions

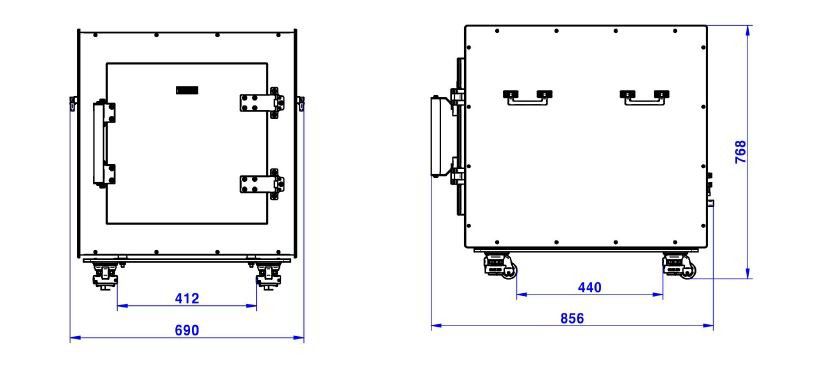

TC-5810A Outside size : 690(W) x 856(D) x 768(H) mm
