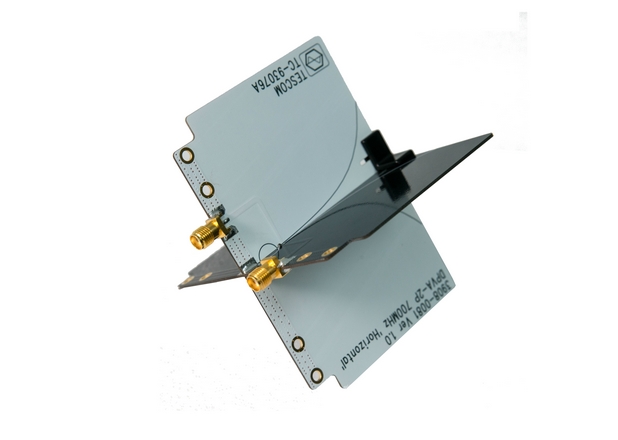

Antenna Type: DPVA(Dual Polarized Vivaldi Antenna)
Frequency Range: 700MHz ~ 6000 MHz
RF Connector: SMA(f)
Dimension: 72(W) x 100(D) x 1(H) mm (for Each)
Terminal: 50 Ohm
VSWR: < 3.2 @ 700 MHz ~ 6000 MHz
Polarization: TC-93061A (RHCP)
Features

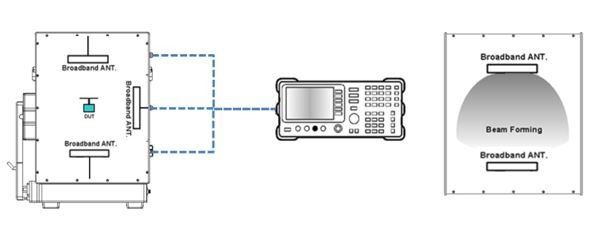

Receiver sensitivity testing, Transmitter radiated power testing.
Mobile Phones, WLAN, PDA, Bluetooth, LTE, GNSS.

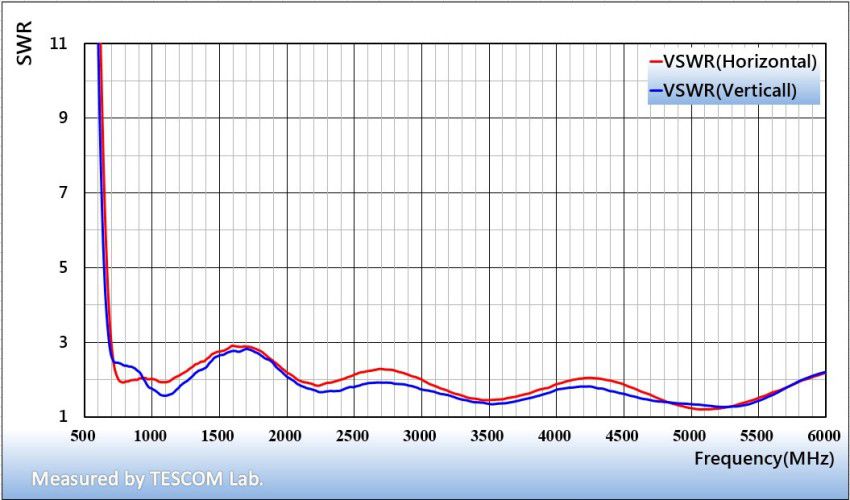

◈ VSWR

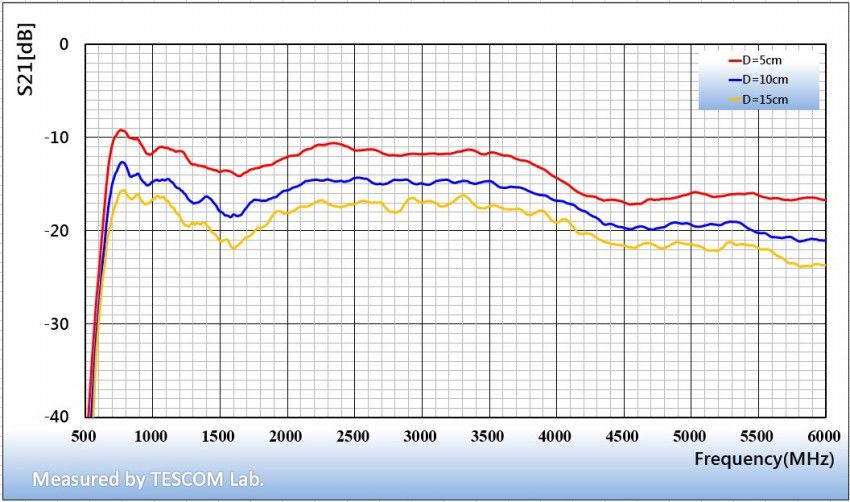

◈ Path loss difference depending on distance between Two Antenna Coupler
TC-93076A Path Loss (Horizontal)
TC-93076A Path Loss (Vertical)
