Power: 220/110V 50/60 Hz 0.4~0.7 MPa
Weight: 180 kg
Dimensions: 560 x 450 x 580 mm (L x W x H)
Bursting pressure up to: 1100KPa, accuracy ≤ ±0.2%F•S
Burst distension up to: 70 mm
Test Heads: 100, 50, 10, 7.3 cm2 (112.8, 79.8, 35.7, 30.5 mm Dia.)
Standards: ISO 13938-2, IWS TM29, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17, AS2001.2.4, GB/T 7742

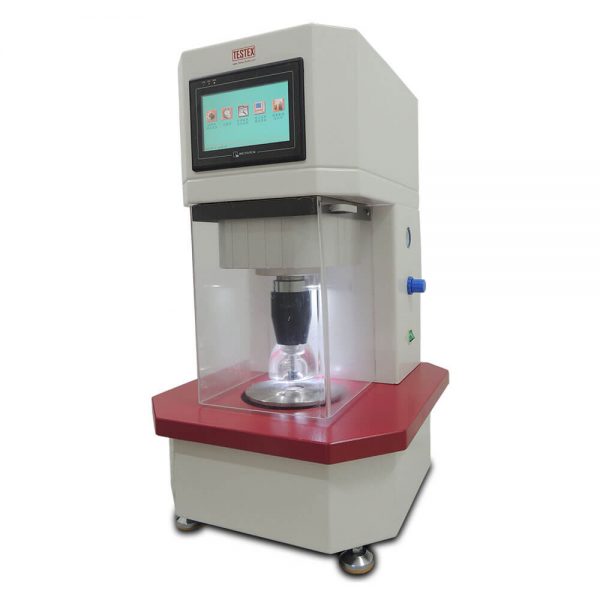

Pneumatic Bursting Tester, is to determine the bursting pressure of fabrics using pneumatic test method, including knits, woven fabric, non-woven fabric, laminated fabric and other craft-made fabric.
A test specimen is clamped over an expansive diaphragm by a circular clamping ring; increasing compressed air pressure is applied to the underside of the diaphragm, causing distension of the fabric until the test specimen bursts; the bursting strength and distension are determined.
Features:
Automatic clamping and burst test, automatic calibration
Equipped with lamp for clear observation
Transparent acrylic cover ensures safe operation
4 most commonly used test areas are available and be easily shifted
