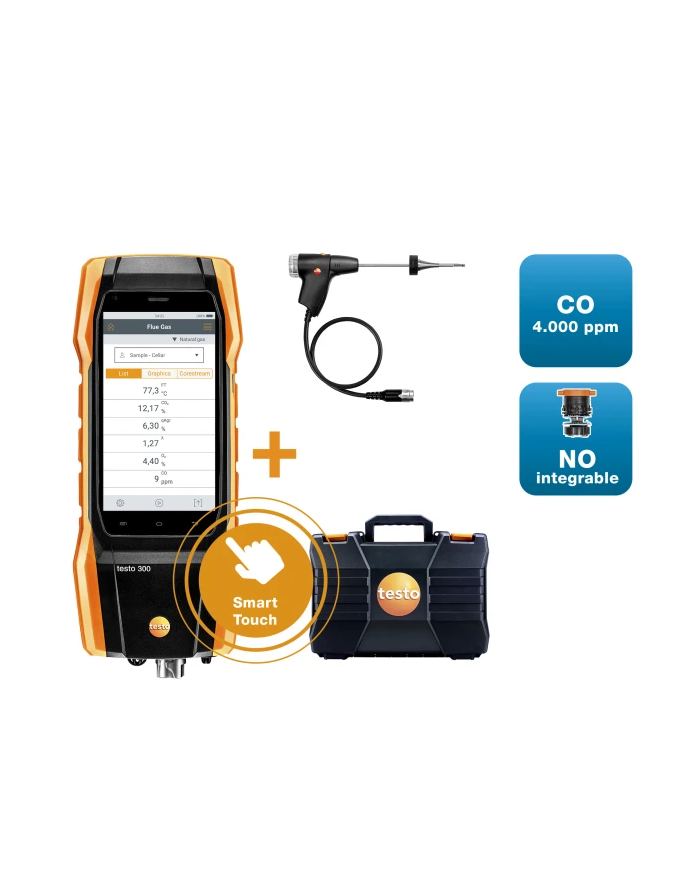

TESTO 300 Longlife kit 1 Flue Gas Analyzer Set

Temperature - TC Type K (NiCr-Ni)

Measuring range: -40 to +1200 °C

Accuracy

±0.5 % of mv (Remaining Range)

±0.5 °C (0.0 to +100.0 °C)

Resolution

1 °C (Remaining Range)

0.1 °C (-40 to +999.9 °C)

Differential Pressure - Piezoresistive

Measuring range: -100 to +200 hPa

Accuracy

±1 % of mv (+50.1 to +100.0 hPa)

±0.5 hPa (0 to +50.0 hPa)

±1.5 % of mv (+100.1 to +200 hPa)

Resolution: 0.01 hPa

Flue gas O₂

Resolution: 0.1 Vol.%

Flue gas COlow (with H₂-compensation)

Measuring range: 0 to 500 ppm

Accuracy

±2 ppm (40 to +500 ppm)

±5 % of mv Remaining Range

Resolution: 0.1 ppm

Flue gas NO

Measuring range: 0 to 3000 ppm

Accuracy

±5 % of mv (101 to 2000 ppm)

±10 % of mv (2001 to 3000 ppm)

5 to 0 ppm

Resolution: 1 ppm

Flue gas Nolow

Measuring range: 0 to 300 ppm

Accuracy

±5 % of mv (40 to 300 ppm)

±2 ppm (0 to +39.9 ppm)

Resolution: 0.1 ppm

Differential Pressure flue gas Draught - Piezoresistive

Measuring range: -9.99 to +40 hPa

Accuracy

±0.02 hPa (0.1 to +3.00 hPa)

±1.5 % of mv (3.01 to +40 hPa)

±0.005 hPa (+0 to +0.1 hPa)

Resolution

0.001 hPa (0 to 0.1 hPa)

0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)

Measuring range: 0 to 120 %

Resolution: 0.1 %

Flue gas loss (calculated)

Measuring range: 0 to 99.9 %

Resolution: 0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Measuring range: Display range 0 to CO₂ max

Accuracy: ±0.2 Vol.%

Resolution: 0.1 Vol.%

Flue gas CO (without H₂-compensation)

Measuring range: 0 to 4000 ppm

Accuracy

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

±20 ppm (0 to 400 ppm)

Resolution: 1 ppm

Ambient CO

Measuring range: 0 to 2000 ppm

Accuracy

±10 % of mv (101 to 2000 ppm)

±10 ppm (0 to 100 ppm)

Resolution: 1 ppm

General technical data

Operating humidity: 15 to 90 %RH non-condensing

Weight: approximately 800 g

Dimensions: 244 (including probe connection) x 98 x 59 mm (LxWxH)

Operating temperature: -5 to +45 °C

Protection class: IP40

Display type: 5.0" touch display, HD 1280*720 pixels, IPS (160 k)

Power supply: Rechargeable battery, USB mains unit

Memory: 1,000,000 measuring values

Battery life: 10 h

Storage battery type: Lithium ion battery

Storage temperature: -20 to +50 °C

Charging temperature: 0 to +45 °C

Differential Pressure 4 Pa measurement - Piezoresistive

Measuring Range: -50 to +50 Pa

Accuracy

±0.3 Pa (< 10 Pa)

±3 % of mv (Remaining Range)

Resolution: 0.1 Pa

Compact basic flue gas probe

Diameter probe shaft: 6 mm

Cable length: 1.5 m

Length probe shaft: 180 mm

Temperature maximum: 500 °C

Diameter: 6 mm

Weight: 346 g

Instrument case (height: 130 mm)
