TESTO 860i kit Wireless Thermal Imaging Camera (-20 ~ +350 °C, 256×192 pixels, With protective case) | EMIN.COM.MM

Product image

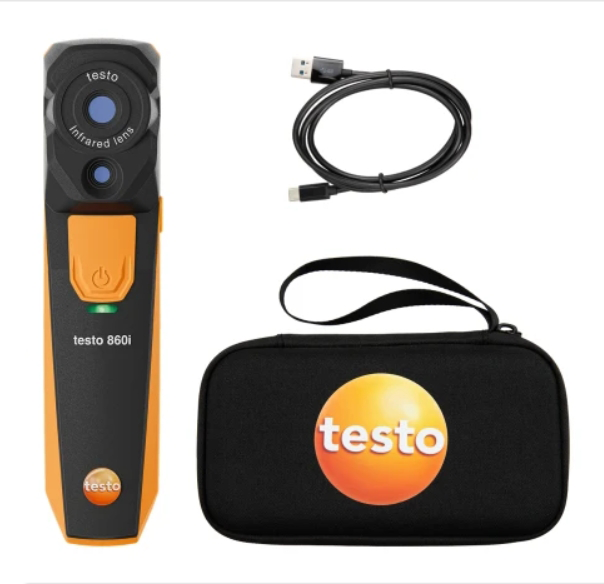

TESTO 860i kit Wireless Thermal Imaging Camera (-20 ~ +350 °C, 256×192 pixels, With protective case)

ManufacturerTESTO

Model860i kit

P/N0563 0860

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

General technical data

Protection class: IP54

System requirements: Requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

Infrared image output

Field of view:48° x 36°

Focus: Fixed focus

Minimum focus distance : 0.3 m

Image refresh rate: 9 Hz

Infrared resolution: 256 x 192 pixels

Thermal sensitivity: 50 mk

Spectral range: 8 to 14 µm

Image output visual

Minimum focus distance : 0.4 m

Image size: 640 x 480 pixels

Image presentation

Colours: iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette

Digital zoom: yes

Display option : IR image / real image

Measurement

Accuracy : ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40 °C and scene temperature of 0... +150 °C or +100... +350 °C)

Emissivity: 0.01 to 1

Measuring range: -20 to +350 °C

Reflected temperature: manual; (via testo Smart App)

Imager equipment

Full screen mode: yes

WLAN Connectivity :Communication with the testo Smart App; WIFI: IEEE 802.11b/g/n*

Bluetooth :Peer-to-peer advertising for fast connection set-up*

Remote-controlled operation :Up to 10 m from the mobile device (via WLAN)

* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

Imager storage

File format image: .bmt; .jpg; .csv

Storage device: On a mobile device

Power supply

Battery type: Integrated Li-ion rechargeable battery

Charging options: USB-C

Charging time : Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Ambient Condition

Air humidity :5 to 95 %RH, non-condensing

Vibration : IEC 60068-2-6

Impact resistance test: 1.5 m

Storage temperature: -20 to +70 °C

Operating temperature : -10 to +50 °C

Physical specification

Tripod mounting: 1/4" - 20UNC

Mobile device attachment: Clip span: min. 120 mm, max. 170 mm and device depth up to max. 12 mm

Weight: 195 g

Dimensions: 165 x 45 x 38 mm

PC software

System requirements: Windows® 10; Windows® 11
