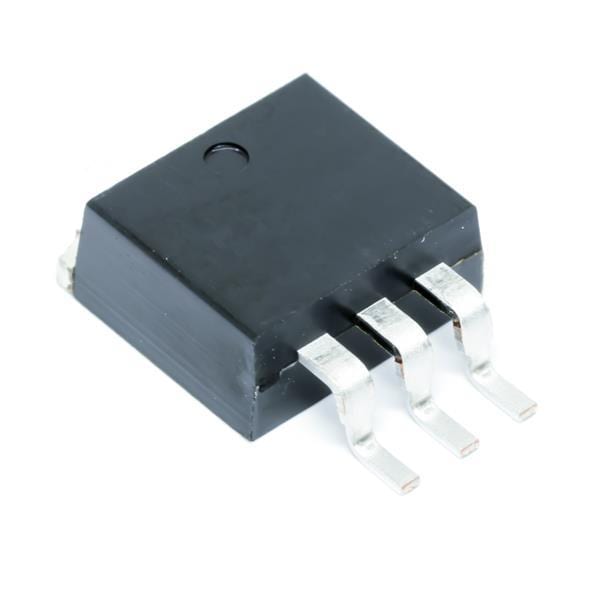

Texas Instruments LM1117SX-ADJ/NOPB Low Dropout Positive Regulator 800mA LDO Linear Reg A 926-LM1117S-ADJ/NOPB

Polarity: Positive

Output Type: Adjustable

Unit Weight: 2 g

REACH - SVHC: Details

Mounting Style: SMD/SMT

Output Current: 800 mA

Output Voltage: 1.25 V to 13.8 V

Dropout Voltage: 1.2 V

Line Regulation: 0.035 %

Load Regulation: 0.2 %

Number of Outputs: 1 Output

Quiescent Current: 5 mA

Reference Voltage: 1.262 V

Moisture Sensitive: Yes

Input Voltage - Max: 15 V

Input Voltage - Min: 2.6 V

Dropout Voltage - Max: 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA

Ib - Input Bias Current: 5 mA

Operating Supply Current: 5 mA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 75 dB
