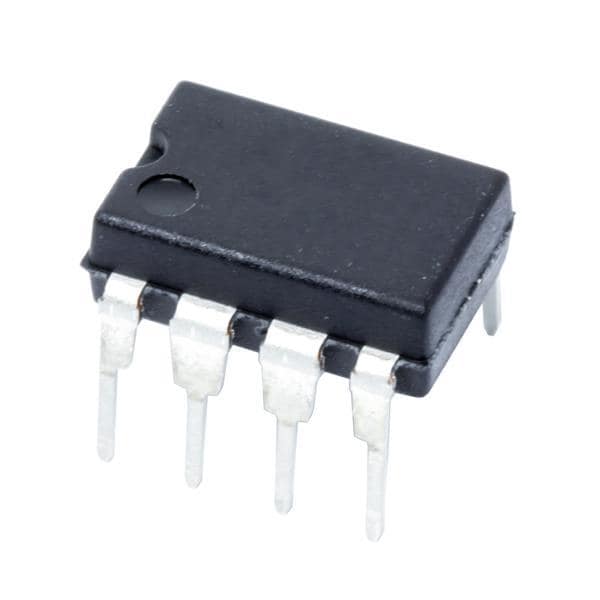

Texas Instruments TLC25M2ACP Operational Amplifiers LiNCMOS Med Bias A 595-TLV9102IDR
Manufacturer: Texas Instruments Model: TLC25M2ACP - Contact
Width: 6.35 mm
Height: 4.57 mm
Length: 9.81 mm
Shutdown: No Shutdown
Input Type: Rail-to-Rail
Technology: LinCMOS
Supply Type: Single
Unit Weight: 440.400 mg
Amplifier Type: Low Power Amplifier
Mounting Style: Through Hole
SR - Slew Rate: 5.3 V/us
Voltage Gain dB: 104.61 dB
Number of Channels: 2 Channel
Supply Voltage - Max: 16 V
Supply Voltage - Min: 1.4 V
Pd - Power Dissipation: 1 W
Ib - Input Bias Current: 60 pA
Operating Supply Current: 300 uA
Operating Supply Voltage: 1.4 V to 16 V
Vcm - Common Mode Voltage: Negative Rail - 0.2 V to Positive Rail - 1 V
Vos - Input Offset Voltage: 5 mV
GBP - Gain Bandwidth Product: 525 kHz
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
en - Input Voltage Noise Density: 30 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 77 dB
