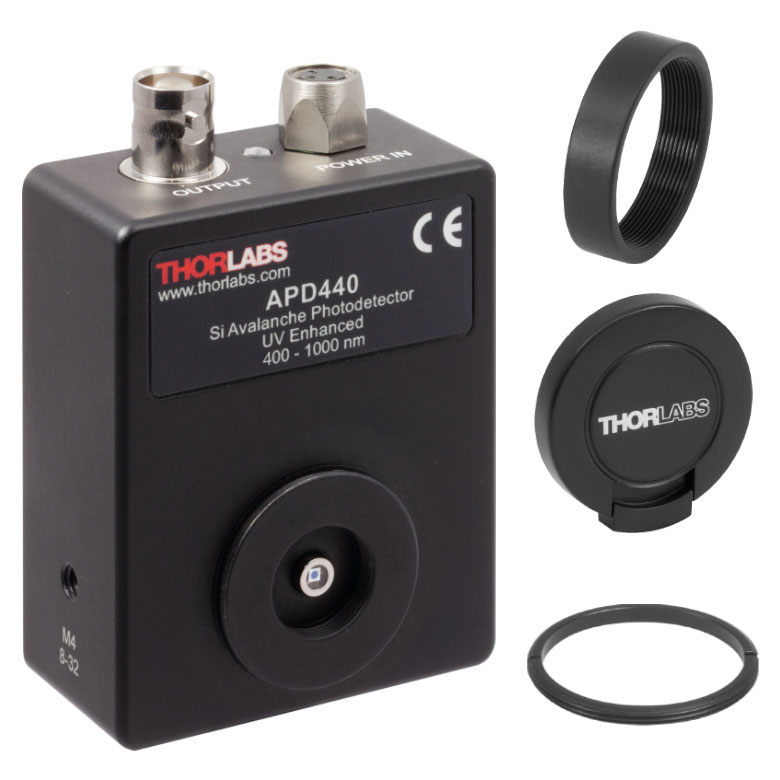

Key Specifications(a)
Detector Type: Silicon APD
Wavelength Range:DC - 100 kHz
Output Bandwidth (3 dB)(b): DC - 400 MHz
Active Area Diameter: 1.0 mm
Typical Max Responsivity: 53 A/W @ M = 100(d)
Transimpedance Gain: 25 MV/A (50 Ω) 50 MV/A (High-Z)
Max Conversion Gain(e): 2.65 × 10^9 V/W
M Factor Adjustment Range: 10 - 100 (Continuous)
M Factor Temperature Stability(f): ±2% (Typical); ±3% (Max)
Saturation Power (CW): 1.54 nW @ M = 100(d) 15.4 nW @ M = 10
Minimum NEP(g): 3.5 fW/√Hz
Dimensions (H x Wx D): 2.93" x 2.21" x 1.08"
(a) For a complete list of specifications and responsivity graphs, please see the manual. Data are valid at 23 ± 5 °C and 45% ± 15% relative humidity (non-condensing).
(b) At Maximum Gain Setting
(c) At 600 nm
(d) At 800 nm
(e) At the Peak Responsivity Wavelength
(f) Within the 23 ± 5 °C temperature range.
(g) For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper.
