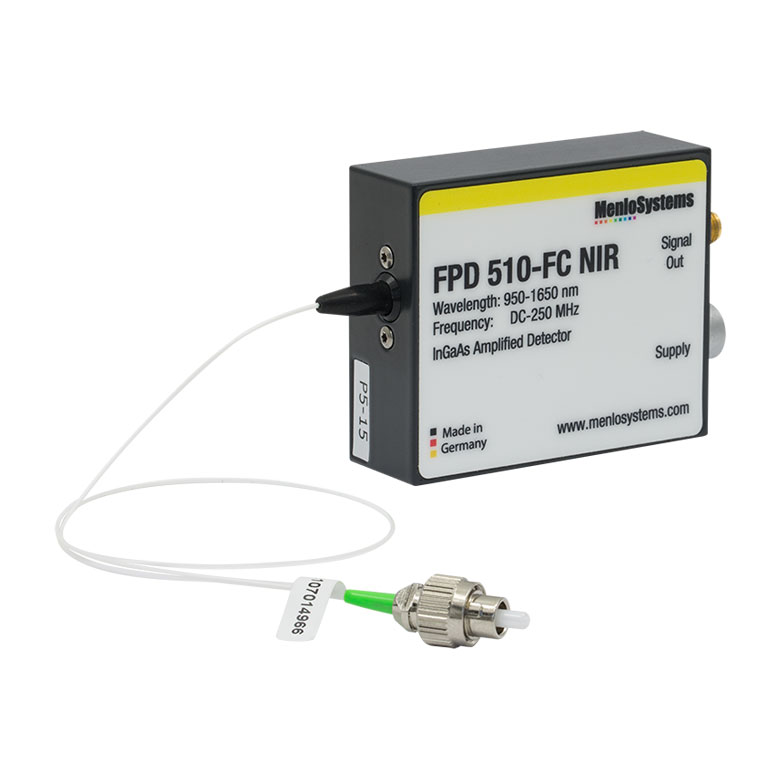

THORLABS FPD510-FC-NIR InGaAs Fiber-Coupled Amplified Photodetector (Fixed Gain, 950-1650 nm)
Manufacturer: THORLABS Model: FPD510-FC-NIR - Request a Quotation
- Contact
Material: InGaAs
Optical Input: SMF28 pigtail with FC/APC
Spectral Range: 950 - 1650 nm
Saturation Limit: <100 µW
Damage Threshold: 3 mW
Frequency Range: DC - 250 MHz
3 dB Bandwidth: DC - 200 MHz
Rise Time: 2 ns
Gain (fs Pulsed Input)(a): 1.5 x 10^5 Vpp/W
Gain (CW Input)(a): 5 x 10^4 Vpp/W
Dark State Noise Level: -110 dBm/Hz^1/2 (up to 5 MHz). -135 dBm/Hz^1/2 (5 to 250 MHz)
NEP (calculated): 3.0 pW/Hz^1/2
Output Impedance: 50 Ω
Output Coupling: DC
Output Signal: 0 - 1 V
Supply Voltage / Max. Current Consumption: +12 VDC / 50 mA. -12 VDC / 20 mA
Output Connector: SMA female
Operating Temperature: 10 to 40°C
Storage Temperature: -20 to +85°C
Storage Humidity (RH): 10% to 90%
Device Dimensions: 60 mm x 50 mm x 20 mm (2.4" x 2.0" x 0.79")
(a)These detectors are optimized for femtosecond pulses within the specified frequency range. Gain will be approximately a factor of 10 lower for CW operation.
