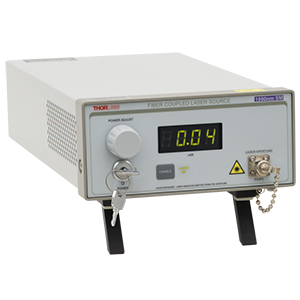

THORLABS S1FC785 Benchtop Laser Sources (785 nm, Single Channel)

Wavelength:

- Minimum: 775 nm

- Typical: 785 nm

- Maximum: 795 nm

Minimum Full Output Power: 20 mW

Setpoint Resolution: 0,1 mW

Laser Class: 3B

Fiber Type: 780HP

Mode Field Diameter (b): 5,0 ± 0,5 µm @ 850 nm

Numerical Aperture: 0,13

Output Fiber Connector: FC/PC, Wide 2.1 mm Key Compatible

Power Stability: 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-up at 25 ± 10°C Ambient)

Display Accuracy: ±10%

Adjustment Range: ~0 mW to Full Power

Input Power: 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz

Modulation Input: 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only

Modulation Bandwidth:

- 5 kHz Full Depth of Modulation

- 30 kHz Small Signal Modulation

Environmental"

- Operating Temperature: 15 to 35 °C

- Storage Temperature: 0 to 50 °C

(b) Mode Field Diameter (MFD) is specified as a nominal value.
