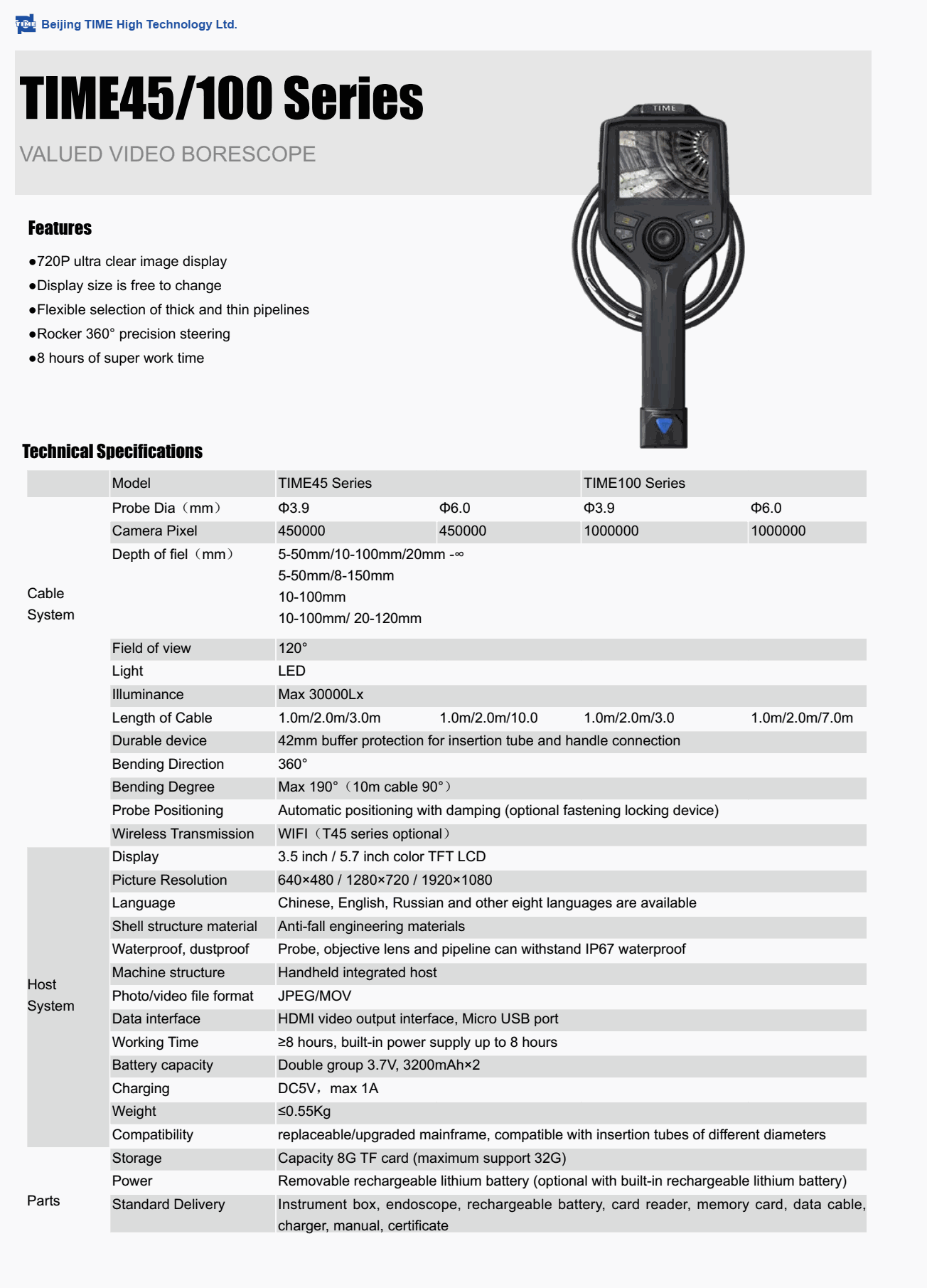

Technical Specifications
Cable System
Probe Dia (mm): Φ3.9; Φ6.0
Camera Pixel: 450000; 450000
Depth of field (mm）:
5-50mm/10-100mm/20mm -∞
5-50mm/8-150mm
10-100mm
10-100mm/ 20-120mm
Field of view: 120°
Light: LED
Illuminance: Max 30000Lx
Length of Cable: 1.0m/2.0m/3.0m; 1.0m/2.0m/10.0
Durable device: 42mm buffer protection for insertion tube and handle connection
Bending Direction: 360°
Bending Degree: Max 190° (10m cable 90°）
Probe Positioning: Automatic positioning with damping (optional fastening locking device)
Wireless Transmission: WIFI (T45 series optional）
Host System
Display: 3.5 inch / 5.7 inch color TFT LCD
Picture Resolution: 640×480 / 1280×720 / 1920×1080
Language: Chinese, English, Russian and other eight languages are available
Shell structure material: Anti-fall engineering materials
Waterproof, dustproof: Probe, objective lens and pipeline can withstand IP67 waterproof
Machine structure: Handheld integrated host
Photo/video file format: jPEG/MOV
Data interface: HDMI video output interface, Micro USB port
Working Time: ≥8 hours, built-in power supply up to 8 hours
Battery capacity: Double group 3.7V, 3200mAh×2
Charging: DC5V， max 1A
Weight: ≤0.55Kg
Compatibility: replaceable/upgraded mainframe, compatible with insertion tubes of different diameters
Parts
Storage: Capacity 8G TF card (maximum support 32G)
Power: Removable rechargeable lithium battery (optional with built-in rechargeable lithium battery)
Standard Delivery: Instrument box, endoscope, rechargeable battery, card reader, memory card, data cable, charger, manual, certificate
