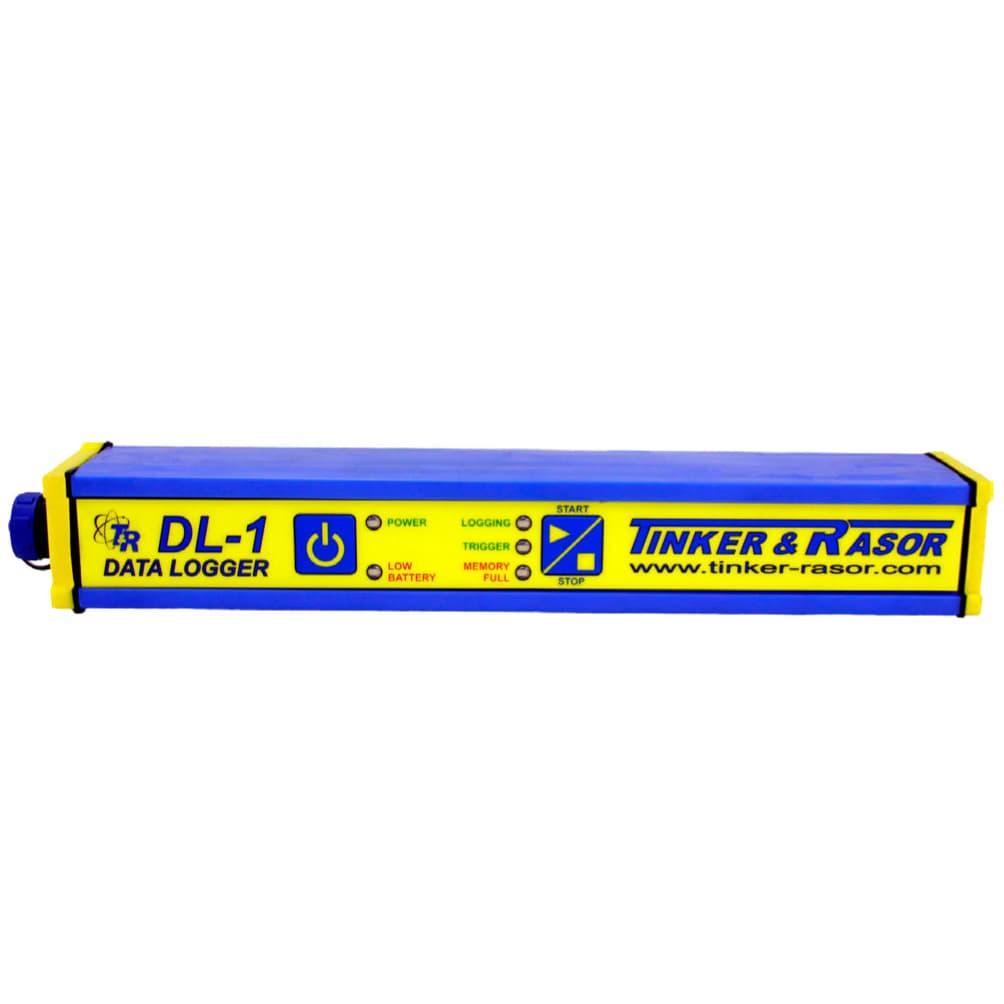

Tinker & Rasor DL-1 Data Logger (4 channels)

FEATURES:

• 1 million read memory

• Configure Sample frequency anywhere from 1000 reads per second to 1 read every 99 minutes

• 4 Channels with independent grounds

• 2 DC Channels with AC filtering, ± 5 volts

• 1 AC Channel, 150 volts RMS

• TrueView Channel with no filtering, ±100 volts

• 200+ MegW Impedance/Channel

• USB Connection to PC

• Several status LEDs on instrument

ENVIRONMENT:

Operating Temp. Range -

-10°C~60°C(14°F~140°F)

Storage Temp. Range -

-20°C~70°C (-4°F~158°F)

SPECIFICATIONS:

Rechargeable Li-Ion battery

4 TRAC Software (included and downloadable)

DIMENSIONS:

INSTRUMENT: 10.75” x 1.5” x 1.5”, 0.5 lbs.(273mm x 38mm x 38mm, 0.227kg)

CARRYING CASE: 12” x 6.75” x 4.5”, 2 lbs.(305mm x 171mm x 114mm, 0.908kg)
