Working pressure: 700bar
Cylinder Capacity @700 bar (Ton): 1000
Cylinder Capacity @700 bar - Push (KN): 10161
Cylinder Capacity @700 bar - Pull (KN): 3039
Stroke (mm): 150
Effective area push (cm²): 1451.5
Effective area pull (cm²): 434.1
Oil capacity push (cm³): 21783
Oil capacity pull (cm³): 6512

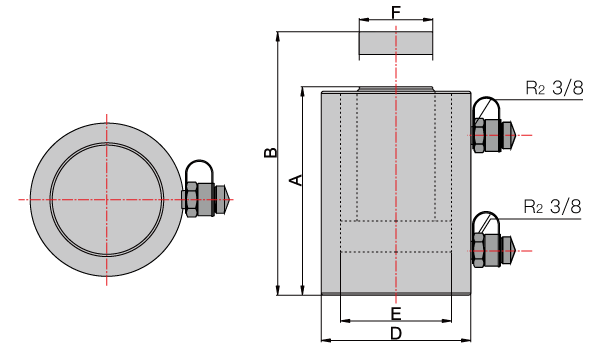

Closed height A (mm): 593
Extended height B (mm): 743
Outside Dia. D (mm): 530
Inside Dia. E (mm): 430
Piston Rod Dia. F (mm): 360
G.W (kg): 970
Handle: Eye bolts
Recommended pump: HHB-630A-III

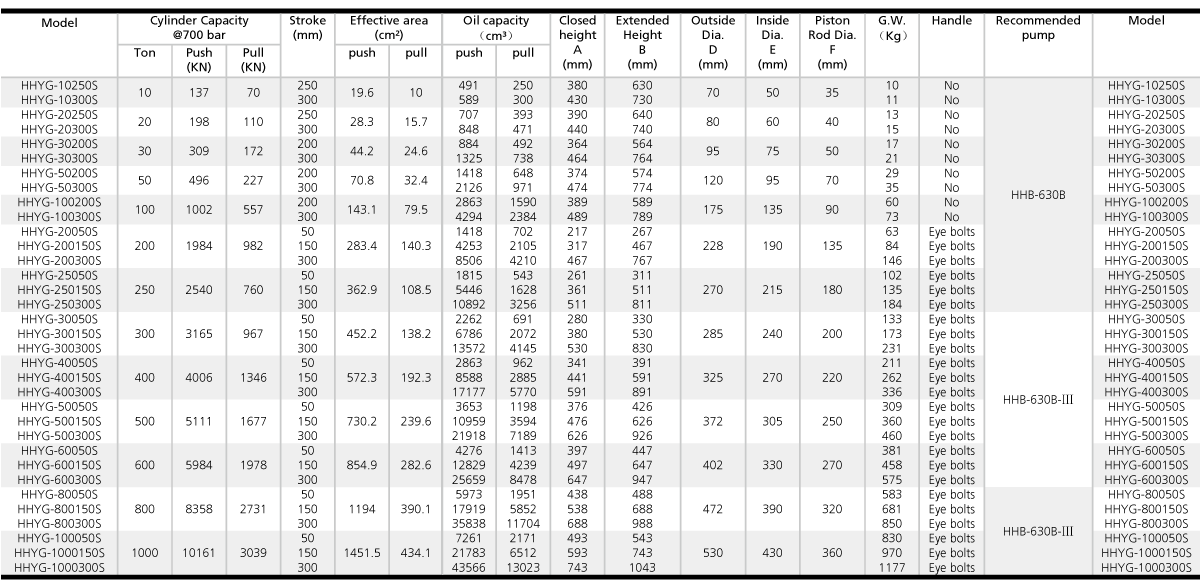

Parameters:
