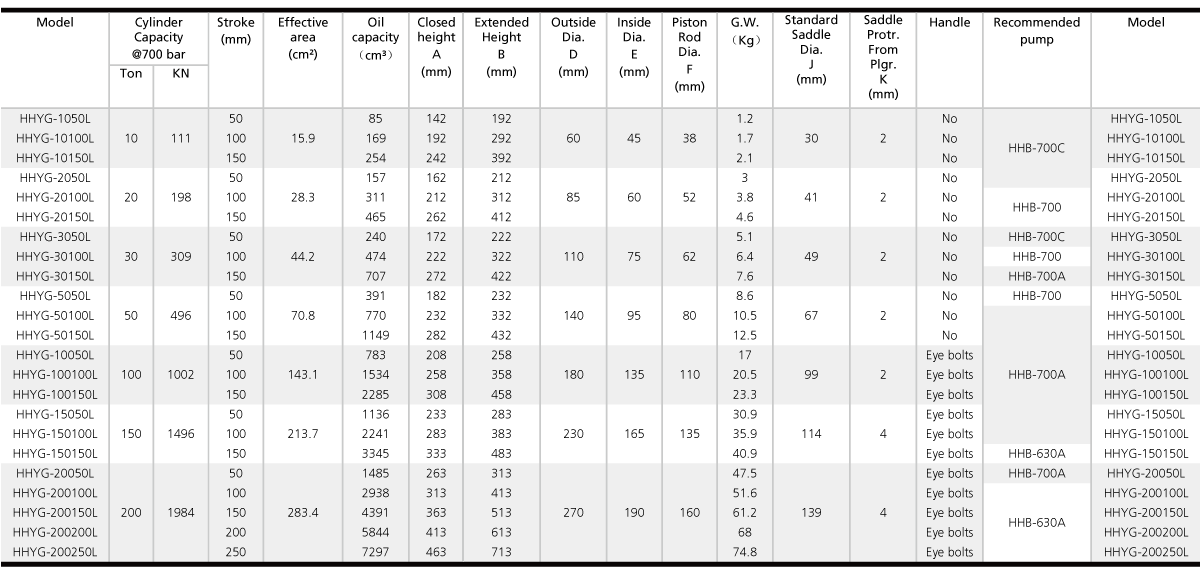

Cylinder Capacity @700bar
+ Ton: 150
+ kN: 1496
Stroke (mm): 100
Effective area (cm²): 213.7
Oil capacity (cm³): 2241
Closed height A (mm): 283
Extended height B (mm): 383
Outside Dia D (mm): 230
Inside Dia E (mm): 165
Piston Rod Dia F (mm): 135
G.W. (kg): 35.9
Standard Saddle Dia J (mm): 114
Saddle Protrusion K (mm): 4
Handle: Eye bolts
Recommended pump: HHB-700A
Details
