Cylinder capacity @700 bar: 50 ton
Stage number: 2
Capacity per stage (kN): 137 / 496
Stroke per stage: 26 mm / 15 mm
Total stroke: 66 mm
Effective area: 7.1 cm² / 19.6 cm² / 70.8 cm²
Oil capacity: 188 cm³

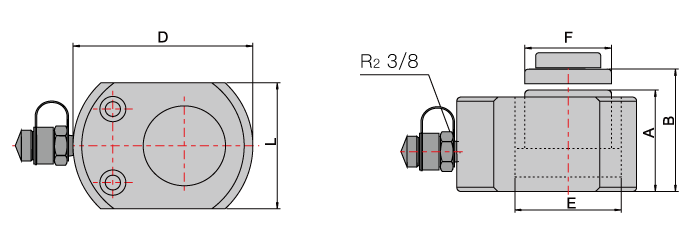

Closed height A: 74 mm
Extended height B: 140 mm
Outside dimensions D×L: 148 × 120 mm
Inside diameter E: 30 mm / 50 mm / 95 mm
Piston rod diameter F: 26 mm / 46 mm / 70 mm
G.W.: 7.9 kg
Recommended pump: HHB-700C

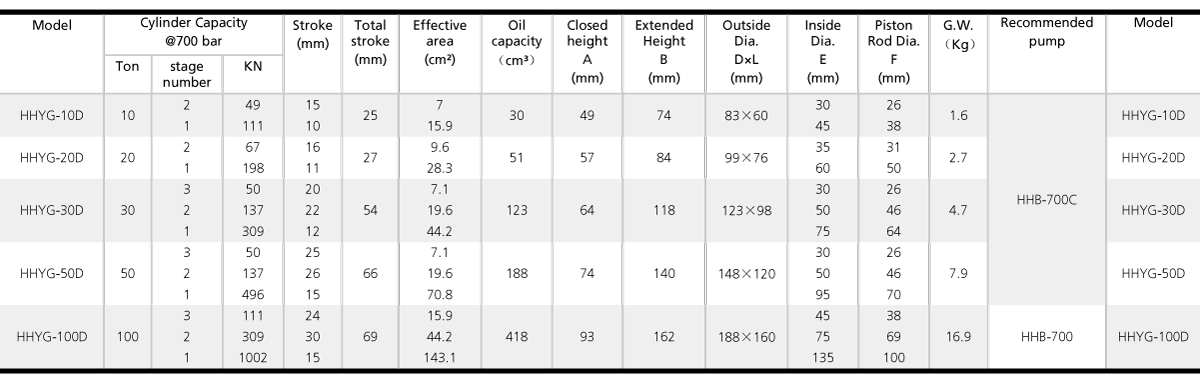

Parameters:
