TOB TOB-05-200-AFCF Automatic Pouch Cell Case/Cup Forming Machine (200*200*6mm) | EMIN.COM.MM

Battery Forming And Grading Machine
TOB TOB-05-200-AFCF Automatic Pouch Cell Case/Cup Forming Machine (200*200*6mm)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

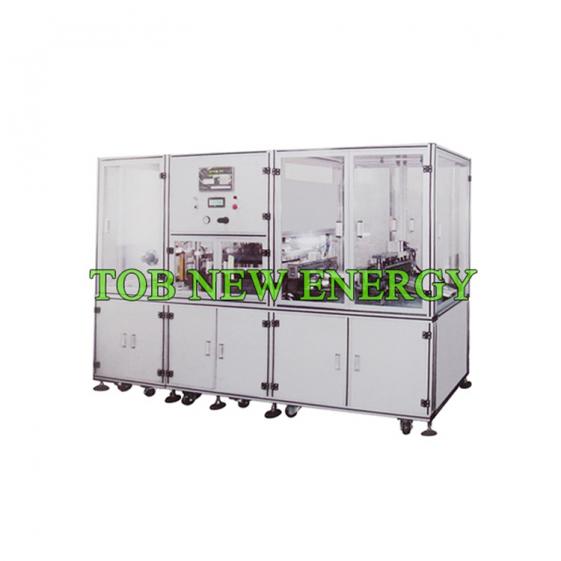

Product image

TOB TOB-05-200-AFCF Automatic Pouch Cell Case/Cup Forming Machine (2002006mm)

ManufacturerTOB(View more products from this manufacturer)

ModelTOB-05-200-AFCF

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Source voltage: AC 220V, 50HZ

Power: 1000W

Air compression: ≥0.6MPa, 15L/S

Operating platform size: 400*300mm

Feeding width: Max: 300mm

Cutting length: Adjustable

Aluminum laminated film thickness: 0.11-0.2mm

Cylinder pressure: 10T

Material roller diameter: Max: 250mm

Dimension: 1950*950*1860mm

Weight: 1T

Depth of parallelism: 0.02mm

Aluminum film stretching force: 0-5N, adjustable

Punching depth: 0-6mm

Knife lift: 5 000 000 times

Output: 400-800EA/H

Datasheet
