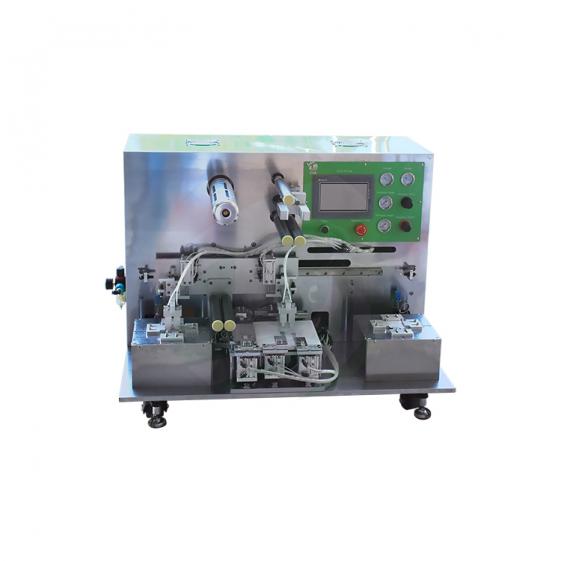

TOB TOB-BDP200-C Lithium Pouch Cell Semi-Auto Stacking Machine

Stacking Type: Z Type

Operate method: Manual feed,robot hand take stacking material, automatic full separator

Maximum Separator diameter: φ250mm

Separator core diameter: 3" roll core with air shaft clamping

Stacking accuracy: Uniformity ≤±0.3mm

Stacking Layer No.: Max 500  can be set

Stacking range: BatteryMin. L36mm *W36mm，Max. L200mm*W200mm (not include tab)

Power supply: Single phaseAC220V±10%(110AVC customized, frequency 50HZ/60HZ)

Power: 0.6KW

Compressed air source: 0.5MPa ~ 0.7MPa

Outer size: L100*W78*H76 (cm)

Weight: About 400kg

Air source: 0.5-0.8Mpa Compressed air
