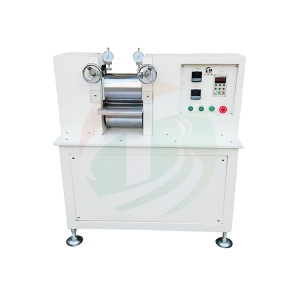

TOB TOB-DR-H150-200 Roll Heat Press Machine For Battery Electrode (Φ150*200mm, 120℃)
Manufacturer: TOB Model: TOB-DR-H150-200 Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Working Voltage: 110V / 220V AC single phase selectable
Power: 6000W Total
Roller Dimension: 150mm(Dia.) x 200mm(W)
Roller surface hardness: >HRC62
Rolling press accuracy: ≤±0.005
Roller surface finish: 0.8
Roller surface hardening depth: 5mm
Rolling press thickness: 0-3 mm adjusted with Dial gauge
Rolling press width: Max 200mm, Customized
Rolling press speed: 0-6.5 m/min adjustable
Heating temperature: RT-120℃, can customized to 200C
Application Notes: This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1, Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2, Coated Rust-proof oil if machine were to be unused for a long period of time
3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.
