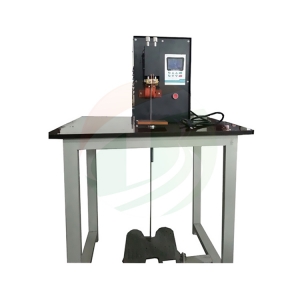

TOB TOB-HT-022 Ni Tab Battery Cell Welding Machine (0.05-0.22mm,110-240V)
Manufacturer: TOB Model: TOB-HT-022 Origin: China Guarantee: 12 Month - Contact
Source voltage: 110V-240V with transformer, Single Phase 50/60Hz
Power: 25KVA
Welding ability: 0.05-0.22mm Ni tab
Scope of application
18650, 26650, 32650 cylindrical battery, NI-MH battery
(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding
Welding setting
Pre welding current : 00-99A,
Welding time : 00-30S
Welding current : 00-99A
Welding stroke: 25mm, the welding height can be adjusted
Operating: Foot switch and pneumatic model can be chosen
Control
The microcomputer chip control,
LCD liquid crystal display, simple and precision
Weight: 70kg
Dimension (L*W*H)
Foot switch model with desk : 800*650*1180mm
Pneumatic model : 400*370*220mm
