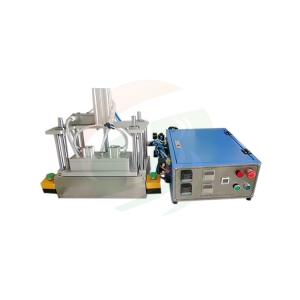

TOB TOB-JK-200 Battery Pouch Vacuum Sealing Machine (1200W, -90kpa-0)

Power Supply: 110V-240V, selectable, Single Phase 50/60Hz

Power: 1200W

Sealing Pressure: Vacuum chamber lid and sealing die need to be drived by compressed high purity inert gases with recommended 60 psi

Vacuum degree: -90kpa-0, adjustable

Sealing head length: 200mm, customize

Sealing stamp width: 5mm, customized

Sealing temperature: RT-250℃, adjustable with control accuracy of +/-2°C

Heating Timer: 0 - 99 seconds Adjustable

Air supply: 0.4-0.6MPa

Dimension(L*W*H)

Sealing Unit : 600mm(L) x 300mm(W) x 500mm(H)

Control Unit: 400mm(L) x 450mm(W) x 200mm(H)

Package dimension: 660*600*590mm

Net weight

Sealing machine : 45kg

Control box : 15kg

Package weight: 75kg

Accessories parts

01 piece heating pipe

03 meters seal components

01 piece intermediate relay

01 piece time relay

01 customized power plug line
