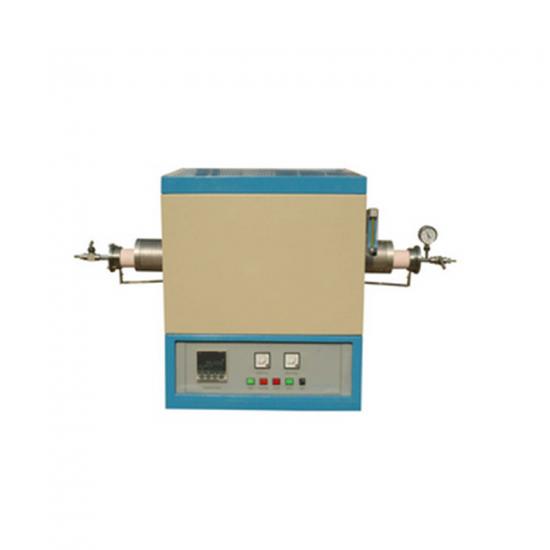

TOB TOB-KTL1700-I Laboratory Tube Furnace (1700℃,4KW)

Tube size: Φ60×1000mm

Power: 4 KW

Dimension (L*W*H): 650*450*670mm

Voltage: AC110V/220V

Heating Zone Length: 260mm

Heating element: 1800 type Silicon molybdenum

Temperature controller

40 program temperature control system,

With over temperature, broken accidentally protection function,

6 groups of PID adjustment

Control precision of + / - 1 ℃

Furnace chamber: 1800 type Polycrystal alumina fiber

Tube material: 99.8 high purity alumina tube

Vacuum Flange & Fitting Ports: Stainless steel flange with Gas nozzle, valve, pressure gauge

Pressure measure system: Pressure gauge (Resistance vacuum gauge can be chosen according requirements)

Air intake control: Flow meter (Protons flow controller can be chosen according requirements )

Vacuum system: Vacuum pump can be chosen
