Source voltage: AC 380 V, 3 Phase, 50 HZ
Power: 8.5KW
Design capacity: 45 L
Working capacity: 30 L

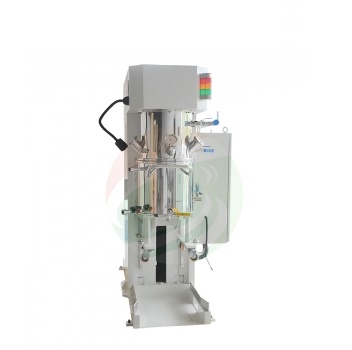

Basic structure
A, Electric lifting barrel.
B, Single direct material temperature measurement model;
C, Monodisperse shaft + double stirring shaft + belt wall
Barrel (stirring barrels): Dia. 400mm×360mm
Barrel structure
A, Tank material: SUS304.
B, Bladder wall mirror polishing after turning processing, ensure good roundness;
C, Stirring barrels on the flange surface and on barrel through the sealing ring seal;
D, Bottom with G1 "(DN25) discharge valve;
E, Four roller at the bottom And the barrel body with a push handle.
Planets orbiting speed: 0~50rpm, adjustable
Stirring shaft/stirrer speed: 0~80rpm, adjustable
Dispersion speed: 0~5000rpm, adjustable
vacuum degree: -0.098MPa
Temperature test mode: 0-300 ℃, the temperature measuring probe located close to the bottom of the barrel wall (or bottom), contact with the material and display the temperature
Weight: 1300KG
Dimension (L*W*H): 1800 * 1100 * 2100mm
