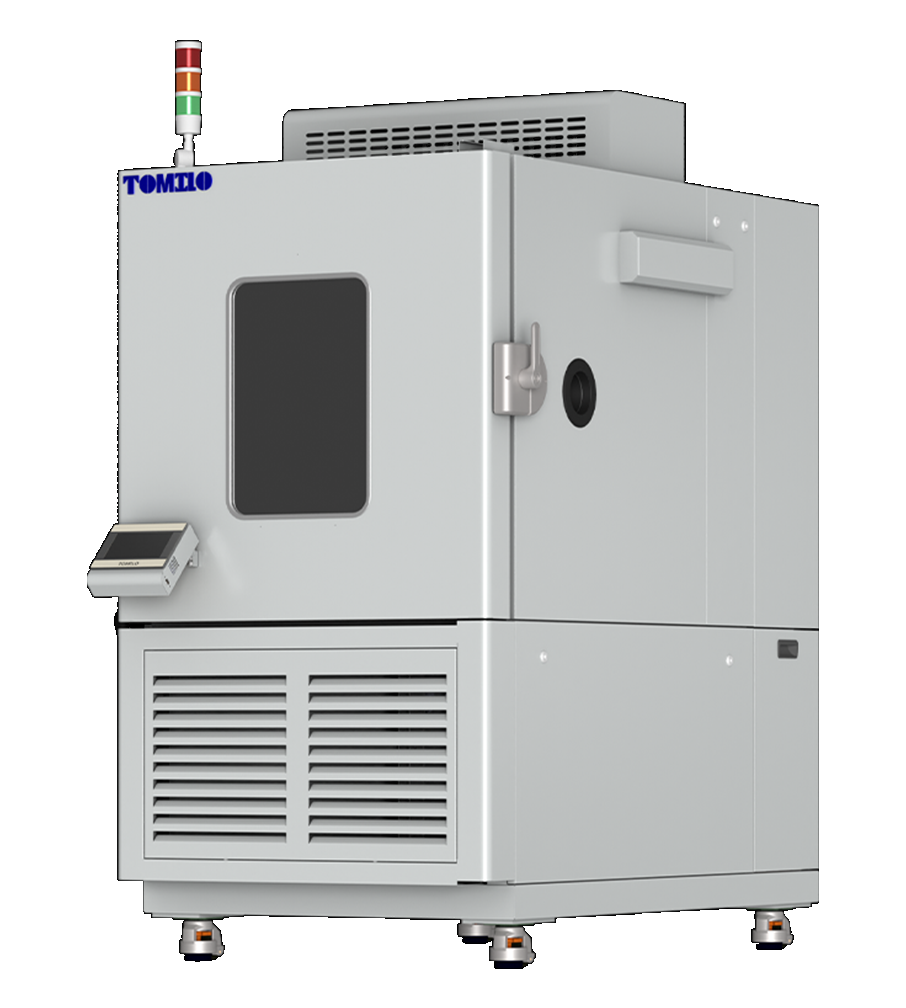

Tomilo TOH-408EXL High and Low Temperature (humidity) Test Chamber (480L; -40~150℃; 10~98%RH)

Inner Size (W*D*H mm）: 480L（800*600*850）

Outer Size(Excluding rotrusions)W*D*Hmm: 1000*1653*2050

Outer Size(Including rotrusions)W*D*Hmm: 1096*1837*2050

Temperature Range:  -40~150℃

Humidity Range: 10~98%RH

Heating Rate: （+20~150℃）≥2℃/min

Cooling Rate: （+20~-40℃）≥1℃/min

Temperature Uniformity: ≤2℃

Humidity Deviation: ±3.0%RH(＞75%RH) ±5.0%RH(≤75%RH)

Temperature Deviation: ≤±2℃

Temperature Fluctuation: ≤±0.5℃

Humidity Fluctuation: ≤±2.0%RH

Temperature Accuracy: 0.1℃

Humidity  Accuracy: 0.1%RH

Maximum Heat Dissipation: 5900W

Humidification Water Inlet Way: Manual+Automatic

Refrigerant: R404A

Humidification pipe specifications: DN6mm

Drainage pipe specifications: DN10mm

Weight: 560kg

Inner Chamber material: SUS304 δ1.0mm

Outer Chamber material: SPCC+Coatingδ1.5mm

Appearance: RAL9006

Insulation materials: Glass wool+phenolic foam board

Noise: ≤69d(B) Test at a height of 1.2m and 1m directly ahead

Window Size: W360×H480mm

Cooling Type: Air cooling (forward air, rear air outlet)

Test Hole: Φ100mm*2（ 1 on left and right Center）

Sample holder specifications: 20kg/PCS ,total Two PCS

Voltage: AC380V±10%  50Hz±10%

Max Power(KW): 10KW

Maximum Current（A）: 18A

Leakage Switch（A）: 25A
