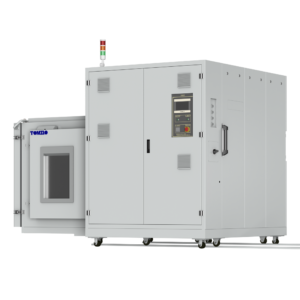

Tomilo TOQH-M1000EXL-5KL E-Motor Test Chamber (95℃~-40℃; 1000mm; 5K)
Manufacturer: Tomilo Model: TOQH-M1000EXL-5KL - Contact
Inner Size（W*D*H mm）: 1000*1000*1000
Outer Size（Excluding protrusions）W*D*Hmm: 2025*2920*2285
Temperature Range: 95~-40
Humidity range: 10%~98%
Heating rate: LINE 5K
Cooling rate: LINE 5K
Sample: 50kg aluminium+150kg steel
temperature uniformity: ≤2℃（-40℃~100℃） others≤3℃
Humidity deviation: ≤±2℃
Temperature deviation: ＞75%RH±3%RH ，≤75%RH±5%RH
temperature fluctuation: ≤±0.5℃
Appearance: RAL7035
Window Size: W360*H480
Refrigerant: R404A+R23
TEST hole: ø100*2+ø50*2
voltage: 380V
Cooling type: Water cooling
Max Power(KW): 37
Maximum Current（A）: 67
Leakage Switch（A）: 80
