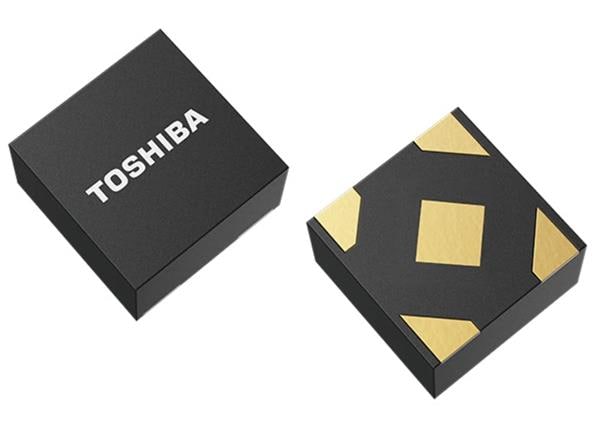

Toshiba TCR2LN08,LF(SE CMOS Low Dropout Regulator LDO Reg Vout=0.8V I=200mA
Manufacturer: Toshiba Model: TCR2LN08,LF(SE - Contact
Polarity: Positive
Output Type: Fixed
Mounting Style: SMD/SMT
Output Current: 200 mA
Output Voltage: 800 mV
Line Regulation: 1 mV
Load Regulation: 15 mV
Number of Outputs: 1 Output
Quiescent Current: 1 uA
Input Voltage - Max: 5.5 V
Input Voltage - Min: 1.5 V
Dropout Voltage - Max: 600 mV
Pd - Power Dissipation: 300 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
