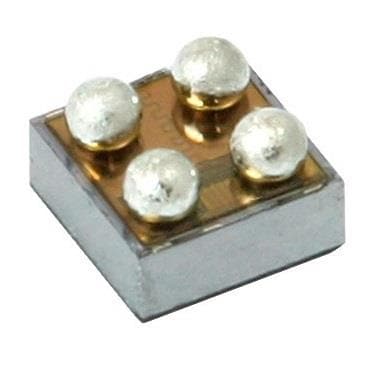

Toshiba TCR3UG28A,LF CMOS LDO Linear Voltage Regulator .3A 2.8V
Manufacturer: Toshiba Model: TCR3UG28A,LF - Contact
Polarity: Positive
Output Type: Fixed
Unit Weight: 0.260 mg
Mounting Style: SMD/SMT
Output Current: 300 mA
Output Voltage: 2.8 V
Dropout Voltage: 140 mV
Line Regulation: 1 mV
Load Regulation: 10 mV
Number of Outputs: 1 Output
Quiescent Current: 340 nA
Input Voltage - Max: 5.5 V
Input Voltage - Min: 1.5 V
Pd - Power Dissipation: 800 mW
Voltage Regulation Accuracy: 1 %
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 70 dB
