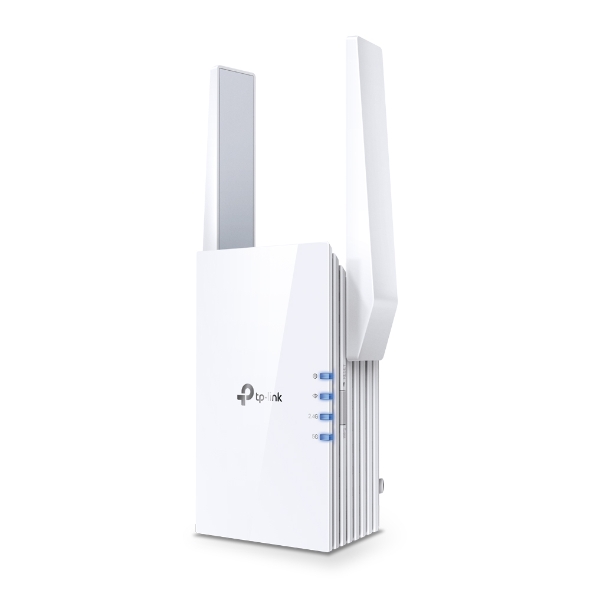

Tp-Link RE705X AX3000 Mesh WiFi 6 Extender (2.4GHz and 5GHz)

HARDWARE FEATURES

Interface: 1 Gigabit Ethernet Port

Button:

WPS Button

Reset Button

Input Power: 100–240V~50/60Hz

Max. Power Consumption: 13 W

Dimensions (W × D × H): 97 × 46 × 158 mm

Antenna: 2 External Antennas

WIRELESS FEATURES

Wireless Standards:

IEEE 802.11a/n/ac/ax 5GHz

IEEE 802.11b/g/n/ax 2.4GHz

Frequency: 2.4GHz and 5GHz

Signal Rate:

574 Mbps at 2.4GHz

2402 Mbps at 5GHz

Working Modes: Range Extender / Access Point

Reception Sensitivity:

5GHz:

11a 6Mbps: -97 dBm

11a 54Mbps: -78 dBm

11ax HE20 MCS0: -96 dBm

11ax HE20 MCS11: -66 dBm

11ax HE40 MCS0: -93 dBm

11ax HE40 MCS11: -62 dBm

11ax HE80 MCS0: -90 dBm

11ax HE80 MCS11: -60 dBm

11ax HE160 MCS11: -58 dBm

2.4GHz:

11g 6Mbps: -96 dBm

11g 54Mbps: -78 dBm

11ax HE20 MCS0: -96 dBm

11ax HE20 MCS11: -66 dBm

11ax HE40 MCS0: -93 dBm

11ax HE40 MCS11: -62 dBm

Wireless Functions:

Enable/Disable Wireless Radio

DFS (latest firmware & hardware required)

Access Control

LED Control

Power Schedule

Wi-Fi Coverage Adjustment

Wireless Security:

WEP

WPA

WPA2

WPA3

Transmission Power (CE):

2.4 GHz: ≤ 16 dBm

5 GHz: ≤ 21 dBm

Mesh Technology: EasyMesh-Compatible

OTHER

Network Services Enabled by Default:

Web Server: Manage device via HTTP/HTTPS

Port: 80/443 — Protocol: TCP

DHCP Server: IP assignment

Port: 67 — Protocol: UDP

App Management:

Port: 20001 — Protocol: TCP

Port: 20002 — Protocol: UDP

Certification: CE, RoHS

Package Content:

Wi-Fi Range Extender RE705X

Quick Installation Guide

System Requirements:

Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX, Linux

Browser: IE 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment:

Operating Temperature: 0℃–40℃

Storage Temperature: -40℃–70℃

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing
