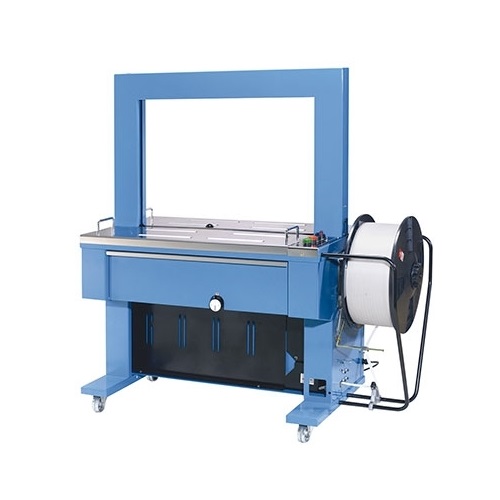

Transpak TP-6000-1 Economy Automatic Strapping Machine (7-70kg)

Electrical Requirements:  110V/220V/230V/240V  (50/60Hz)  1PH

Strapping Capacity: 27 straps/min  (60Hz, 1PH)

Strap Requirement: Strap width: 8, 9 mm/ 12mm/ 15.5  mm, Strap thickness: 0.55 ~ 0.75 mm

Tension Range:  7 - 70 kg

Dimension (W) × (D) × (H):  "1430 × 620 × 1540 mm {arch size: 850mm(W)*600mm(H)}"

Table Height: 810 mm

Machine Net Weight: 220 kg

Maximum Package Weight: 100 kg

Maximum Package Size: "Arch width minus 100 mm x Arch height minus 50 mm (for example: arch size W850 mm x H600 mm, maximum package size is W750 mm x H550 mm)"

Minimum Package Size: 100W × 20H mm

Strap Core Inner Diameter: 200 mm / 230mm / 280 mm (interchangeable)

Power Consumption: 1.2 kW

Temperature of working environment: 5 ~ 40℃

Options

Short feed sensor

Smoke exhaust system with carbon filter

Table without  free roller

PU casters (2 free and 2 with brake)
