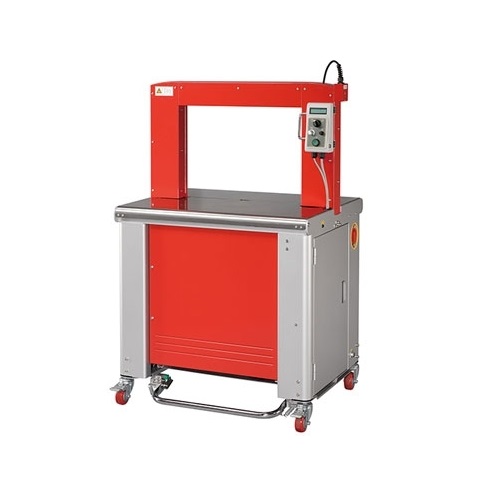

Transpak TP-702 Mercury (1 ~ 32 kg)
Manufacturer: Transpak Model: TP-702 P/N: TP-702-59 Origin: Taiwan - Contact
Capacity
Up to 65 cycles/minute (TP-702-59)
Up to 60 cycles/minute (TP-702-12)
Strap Width
5 mm, 6 mm, or 9 mm (TP-702-59)
12 mm (TP-702-12)
Tension Range
1 to 32 kg (TP-702-59)
1 to 45 kg (TP-702-12)
(Higher tension is on request)
Weight
158 kg (TP-702-59)
167 kg (TP-702-12)
Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH
Options
Photo-eye switch
Rear foot bar switch
Foot pedal switch
Lower adjustable table height (770 mm - 820 mm)
Datasheet
Features
Robust & compact mechanical strapping head
High speed up to 65 straps per minute
Free access to strap guides (patents registered)
Waist-high auto strap feeding
Waist-high quick coil change (patents registered)
Turnable operating control panel
Auto strap ejector
Sensor controlled heater
Low voltage
Strap end ejector
Front foot bar switch
Adjustable table height between 820 mm and 920 mm
