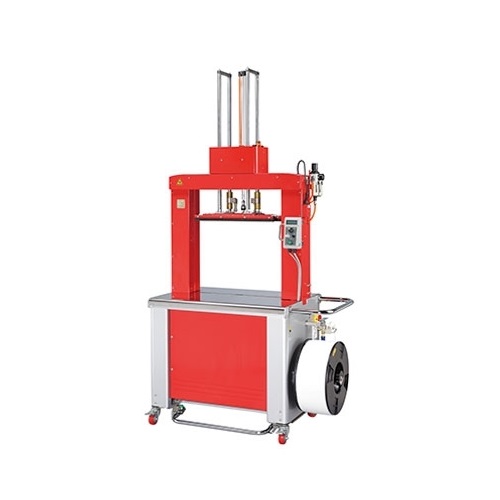

Transpak TP-702P-59 Mercury Automatic Strapping Machines (Dual press, 5-9 mm, 1-32kg)
Manufacturer: Transpak Model: TP-702P-59 Origin: Taiwan - Contact
Capacity
Up to 47 cycles/minute (TP-702P-59)
Strap Width
5 mm, 6 mm, or 9 mm (TP-702P-59)
Tension Range
1 to 32 kg (TP-702P-59)
(Higher tension is on request)
Weight
224 kg (TP-702P-59)
226 kg (TP-702P-12)
Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH
Options
Photo-eye switch
Rear foot bar switch
Foot pedal switch
Lower adjustable table height (770 mm - 820 mm)
VIDEO
Transpak TP-702, TP-702P, TP-702RS Mercury
Datasheet
Mercury TP-702P (with dual press) is built based on Mercury TP-702. It carries all the innovative features and user friendly designs of Mercury TP-702. TP-702P is ideal for strapping compressible material such as corrugated papers, paper sheets, corrugated boxes, plastic sheets, bags, etc.
Features
Robust & compact mechanical strapping head
Free access to strap guides (patents registered)
Dual pneumatic press
Waist-high auto strap feeding
Waist-high quick coil change (patents registered)
Turnable operating control panel
Auto strap ejector
Dispenser release switch
Sensor controlled heater
Low voltage
Strap end ejector
Front foot bar switch
Adjustable table height between 820 mm and 920 mm
