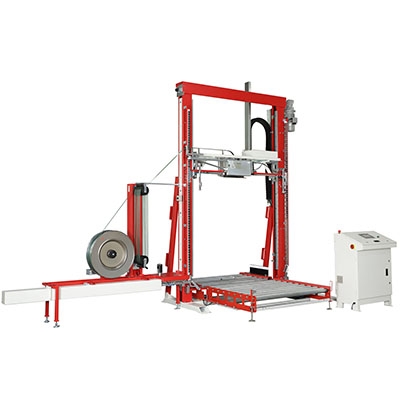

Transpak TP-733VTS Zelos Pallet Strapping Machine (PP & PET)
Manufacturer: Transpak Model: TP-733VTS Origin: Taiwan - Contact
Capacity: Up to 63 pallets/hour (2 parallel straps)
Strap Type: PP and PET strapping
Strap Width: 9 mm, 12 mm, 15.5 mm, or 19 mm
Tension Range
1,100 - 3,200 N (standard)
200 - 1,200 N (optional)
Minimum Package Size: 350 mm (W) x 300 mm (H)
Strap Core Size: 406 mm
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Lower tension range (200-1200 N)
Light tower with low strap sensor
Air conditioner for electric control cabinet
Adding underfeed channel (patent registered)
Automatic self-adjusting strapping head height for next package
End of strap signal
Uplifted support
Video
Watch as reference: TP-733VTS Zelos Top-sealing Pallet Strapping Machine - TRANSPAK
Datasheet
TP-733VTS is ideal for general palletized products. It is also suitable for those with low package height. The top sealing design provides the highest strapping efficiency onto the packages. The easy operating SIEMENS touch panel makes job operation and monitoring simple. With quick connection to master control system, TP-733VTS can perfectly fit every end-of-line packaging operation.
Features
ARES TP-733-SH strapping head
Siemens PLC and HMI
Floating head
Strap can be fed at any height
Friction weld sealing technology
Free access to strap guides
All electric driven design
Strap end ejector
Adjustable sealing and cooling time
Adjustable speed for strapping head movement
Excellent package top detection
Dual channel e-stop
