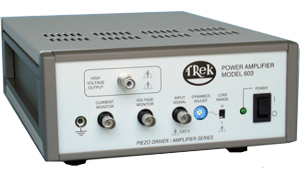

Trek 603-1-H POWER AMPLIFIER/PIEZO DRIVER (200/230V; Single Channel)

Line Voltage: 200/230V

Output Voltage Range:

0 to ±125 V DC or peak AC

0 to -250 V DC or peak AC

0 to +250 V DC or peak AC

Output Current Range: ±40 mA DC; ±80 mA peak AC, for less than 1 ms

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 10 kΩ, nominal

DC Voltage Gain: 50 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than 500 mV

Output Noise: Less than 20 mV rms*

Slew Rate (10% to 90%): Greater than 100 V/µs

Large Signal Bandwidth : DC to greater 150 kHz (5%distortion)

Dimensions: 433.8 mm H x 108 mm W 381 mm D (17” H x 4.25” W x 15” D)

Weight: 4.3 Kg
