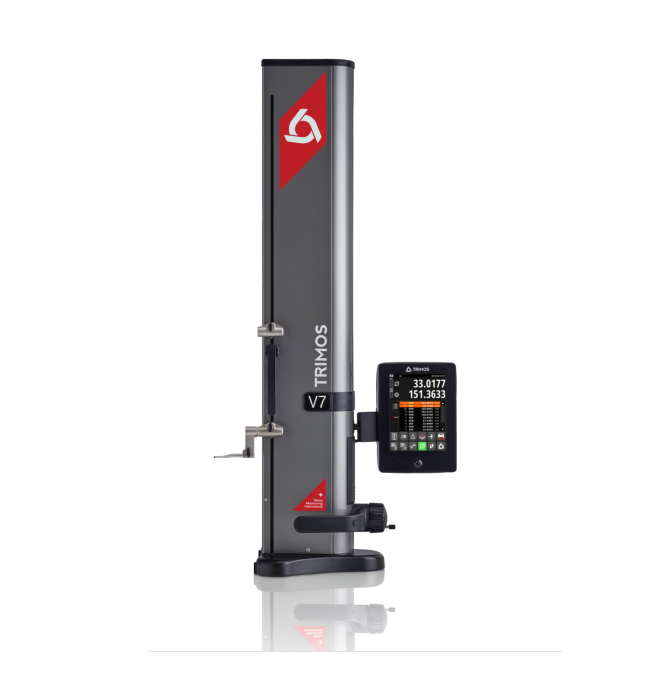

Trimos V7-1100 Height Gauges (1110 mm)
Manufacturer: Trimos Model: V7-1100 P/N: 700 110 30 07 - Contact
Measuring range mm (in) : 1110 (44)
Application range mm (in) : 1422 (56)
Max. permissible errors, BMPE µm : 2.5 + L(mm)/300
Repeatability, RMPE (2s) µm : 1 (Ø: 2)
Perpendicularity deviation (frontal), SMPE µm : 11
Max. resolution mm (in) : 0.0001 (0.000005)
Measuring force N : 0.75 ÷ 1.5
Autonomy h : 12
Data output : USB / RS232 / Wireless (optional)
Air cushion : Yes
Weight kg : 34
