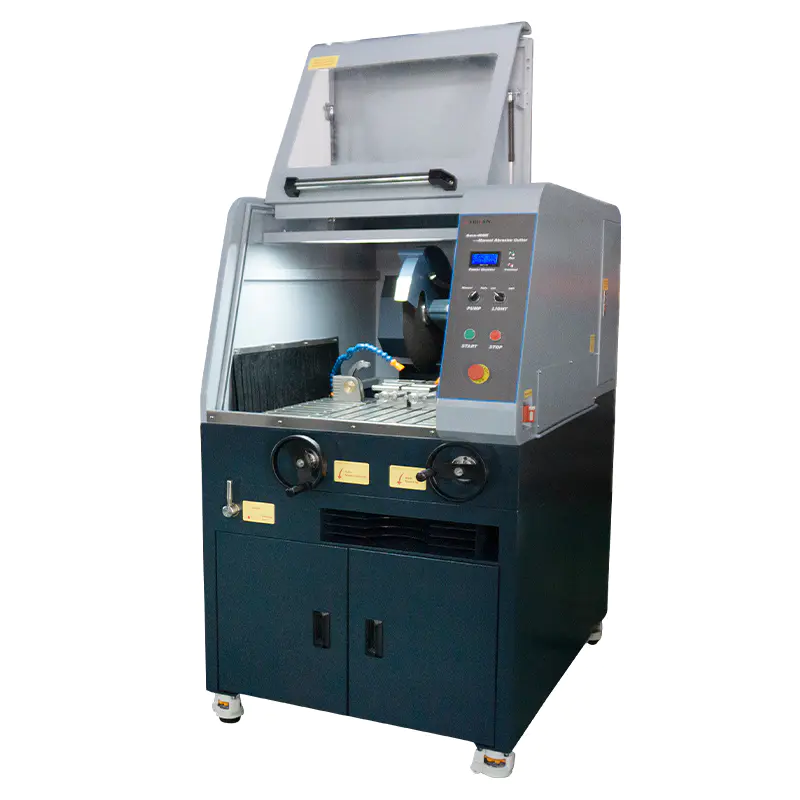

Trojan Beta-400Pro Automatic Cut-Off Machine (Φ400 mm; 800~2000rpm)

Wheel Diameter: Φ400 mm

Motor Power: 7.5 kW

Wheel Speed: 800–2000 rpm

Wheel Movement: Manual / Platform Feed / Chop / Segmented / Parallel Slicing

Cut Types: Constant speed / Pulsing / Automatic speed adjustment

Vising Table Size: 438 × 388 mm

Maximum Cutting Diameter:

Φ130 mm (400 mm Abrasive blades)

Φ150 mm (450 mm Abrasive blades)

Maximum Square Cross-Section:

150 × 300 mm (400 mm Abrasive blades)

150 × 300 mm (450 mm Abrasive blades)

Travel Movement:

X-axis: 200 mm

Y-axis: 370 mm

Z-axis: 220 / 175 mm

Features

1. Wheel Diameter:Ф400mm/Ф450mm;

2. Rated power: 7.5kW;

3. Maximum cutting diameter: Ф130mm(400mm wheel), Ф150mm(450mm wheel);

4. Cast aluminum base, 304 stainless steel cover for strength, durability, and corrosion resistance;

5. Joystick control for XYZ-axis alignment, easy and quick operation;

6. Large worktable and operating space;

7. X-axis platform automatically moves, enabling continuous cutting;

8. Equipped with an exhaust and air purification system;

9. 150 Litre freestanding independent water tank;

10. Integrated magnetic separator, paper belt filtration system, and laser alignment for clean operation and precise positioning.
