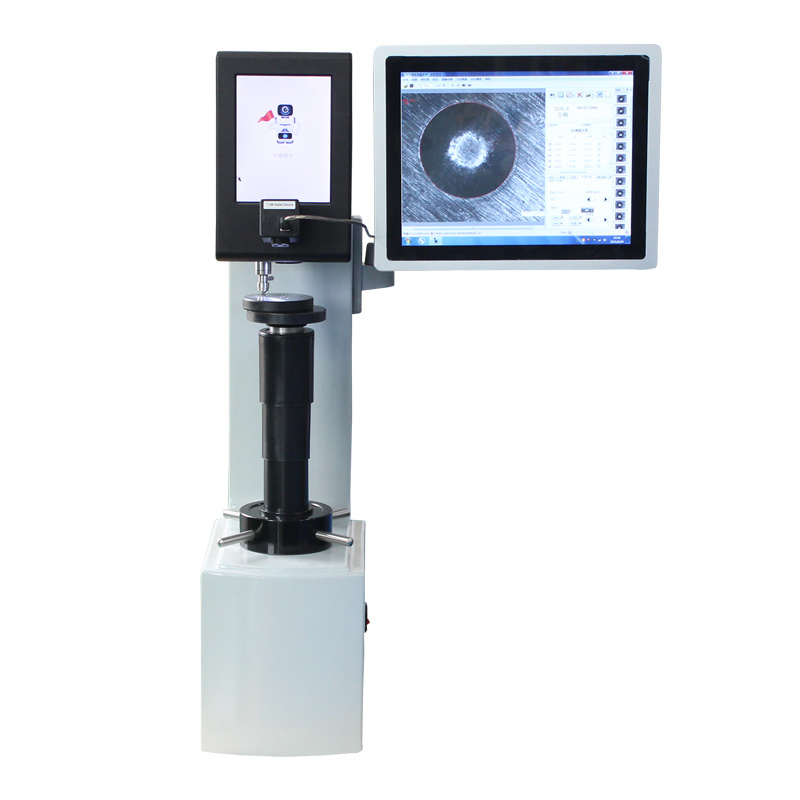

Trojan HBST-3000Z Image Analysis-Based Brinell Hardness Tester

Testing Force: 31.25 kgf, 62.5 kgf, 100 kgf, 125 kgf, 187.5 kgf, 250 kgf, 500 kgf, 750 kgf, 1000 kgf, 1500 kgf, 3000 kgf (306.45 N, 612.9 N, 980.7 N, 1266 N, 1839 N, 2452 N, 4903 N, 7355 N, 9807 N, 14710 N, 29420 N)

Measurement Scale: BW2.5/31.25, HBW2.5/62.5, HBW5/31.25, HBW5/62.5, HBW5/125, HBW2.5/187.5, HBW5/250, HBW10/250, HBW10/500, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000

Hardness Testing Range: 8–650 HBW

Method of Applying Test Force: Automatic (Loading / Holding / Unloading)

Hardness Reading: 8-inch Integrated Touchscreen; 14-inch Touchscreen All-in-One Computer

Camera Resolution: 3 Megapixel Resolution

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Data Output: Integrated Printer with RS232 Interface

Switching Between Objective Lens and Indenter: Automatic Switching

Micrometer: 20X Digital Measuring Eyepiece

Smallest Scale Value of the Micrometer Drum: 0.001 mm

Holding Time: 0–60 s

Distance from the Center of the Indenter to Wall: 150 mm

Maximum Sample Height: 280 mm

CCD Measurement Method: Automatic or Manual

Power Supply: AC220 V, 50 Hz

Applicable Standards: ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2

Dimensions: 580 × 560 × 930 mm

Weight: 135 kg

Features

An industrial tablet PC is mounted on the machine body, equipped with an industrial-grade camera and CCD image processing software. It supports bothmanual and automatic image measurements, and allows direct export of test data and images, ensuring efficient and user-friendly operation;

Thetesting process is CPU-controlled, with automatic switchingbetween the objective lens and indenter. Mechanical and electronic coordination ensures precise alignment and improved positioning accuracy. The built-in touchscreenand microprocessor provide intuitive parameter settingsand real-time result display for enhanced usability;

Thesystem offers 11 levels of test force, supports 15 Brinell hardness scales and 14 conversion scales, making it suitable for awide range of metallic materials;

Integrated with a Windows 7-based computer, the tester includes full PC functionality.Test results can be automaticallyexported into Word or Excel reports, with options for direct saving or printing.
