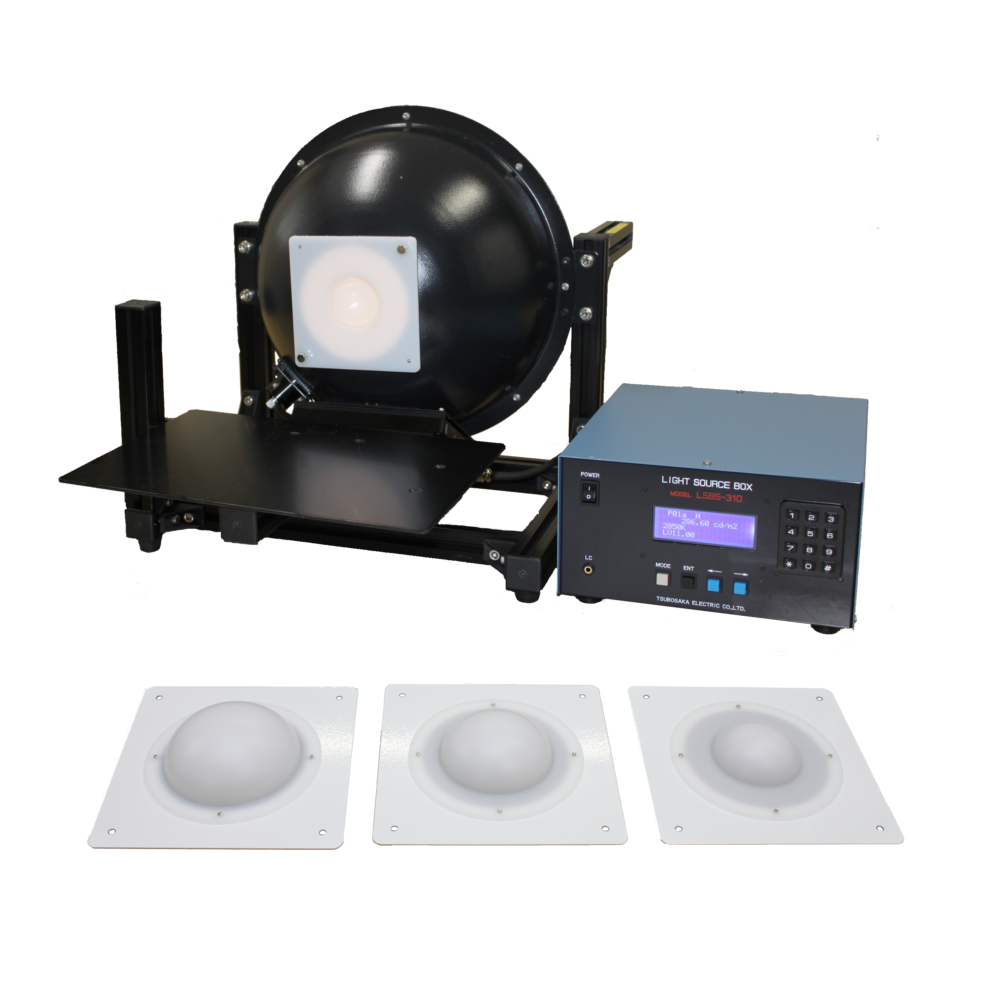

Tsubosaka LSBS-310WCRI High Uniformity Integrating Sphere Light Source (2.24-30,000 cd/㎡)
Manufacturer: Tsubosaka Model: LSBS-310WCRI - Contact
Luminance [LV]: 4-17.71
Luminance [cd/㎡]: 2.24-30,000
Luminance unevenness [± %]: 3
Correlated color temperature [K]: Maximum 6 points from 2600-6500
Light source: LED
Lighting method: DC
Setting range: 300
Setting range: 100
Communication I / F: USB2.0
Power-supply voltage: AC100-240V 50/60Hz
Power consumption [VA]: 100
Dimensions (WxHxD) [mm]
Light source unit: 390x400x563
Operation unit: 230x134x250
Weight [kg]
Light source unit: 9
Operation unit: 3
Datasheet
Φ300mm Integrating Sphere
High luminance 30,000cd/m^2
Luminance is always stable with luminance feedback function
Multiple color temperatures can be set
Output high luminance in spite of distributing high color temperature
Using spherical diffusing plate (separate sold) makes various wide angle camera evaluations
Light source can change to Infrared (850nm, 940nm, 1050nm, 1300nm, 1550nm etc.)
