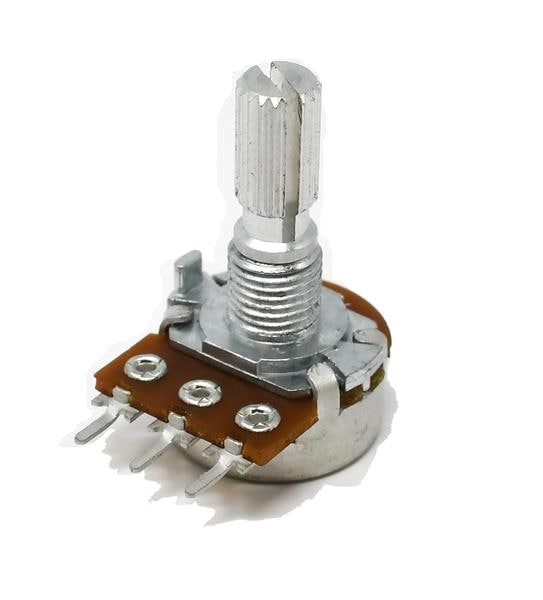

TT Electronics / BI Technologies P164M211FNA25D103 Rotary Metal Shaft 0.2W RL=100K Bushing

Life: 100000 Cycle

Taper: Audio

Width: 17 mm

Length: 16.5 mm

IP Rating: IP40

Tolerance: 20 %

Resistance: 10 kOhms

Shaft Type: Flatted / D

Orientation: Horizontal

Switch Type: No Switch

Element Type: Conductive Plastic

Power Rating: 100 mW (1/10 W)

Shaft Length: 25 mm

Mounting Style: PCB Mount

Shaft Diameter: 6 mm

Voltage Rating: 150 VAC

Number of Gangs: 2 Gang

Number of Turns: 1 Turn

Number of Detents: 11 Detent

Termination Style: PC Pin

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
