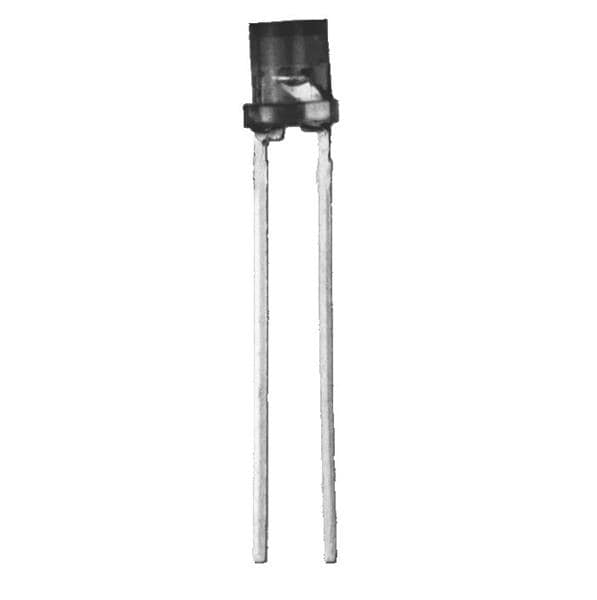

TT Electronics / Optek Technology OP506W NPN Silicon Phototransistor Photo Transistor
Manufacturer: TT Electronics / Optek Technology Model: OP506W - Contact
Width: 3.18 mm
Height: 3.18 mm
Length: 4.19 mm
Wavelength: 935 nm
Unit Weight: 286.100 mg
Dark Current: 100 nA
Mounting Style: Through Hole
Peak Wavelength: 935 nm
Lens Color/Style: Blue
Pd - Power Dissipation: 100 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Collector- Emitter Voltage VCEO Max: 30 V
Collector-Emitter Breakdown Voltage: 30 V
Collector-Emitter Saturation Voltage: 400 mV
