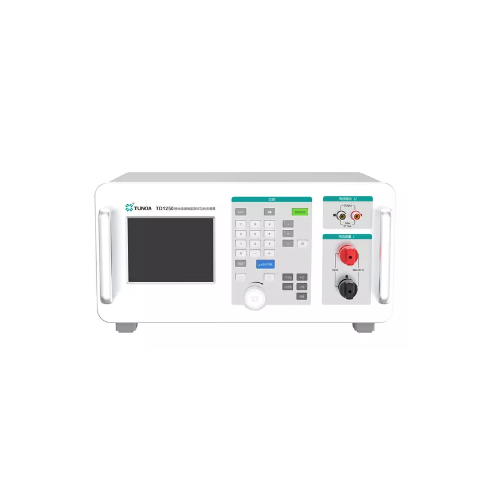

Tunkia TD1250 Verification Device for Earth Continuity Testers (Class 0.05, 50 A)
Manufacturer: Tunkia Model: TD1250 P/N: TD1250-500-50A - Contact
DC resistance simulation:200 μΩ (100 μΩ optional)～20 Ω.
AC resistance simulation：500 μΩ (300 μΩ optional)～15 Ω.
AC/DC current measurement：0.5 A～36 A(60A option）.
Accuracy class：0.02/ 0.05/ 0.1.
Harmonic and ripple function.
Current waveform display function.
With data statistics and analysis, stability test function.
LCD touch screen.
Setting output values by keys.
For detailed specifications, please refer to the Datasheet enclosed herewith
