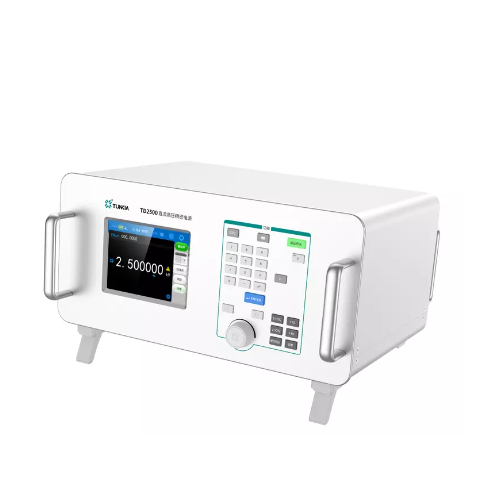

Tunkia TD2500 DC Standard High Voltage Source (Class 0.02, 50 kV)

Range (kV): 5、10、20、50

Stability (%/min)|: /

Accuracy ±(ppm of reading + ppm of range): /

Max  Burden (mA): 2.4

Output range: (10%~100%) of range, 6 digits display

Fineness: 0.002% of range

Load impact: Change in accuracy from no load to full load <0.01%*RG

Protection: arc protection, short circuit protection, and overload protection

Ripple coefficient: ≤ 0.2%

- General Specifications:

Power supply: AC (220 ± 22) V，(50 ± 2) Hz

Temperature: Working temperature：0℃~45℃；Storage temperature：-20℃~70℃

Humidity: Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃; Storage humidity：(20%~80%) R•H，non-condensing

Interface: RS232 interface
