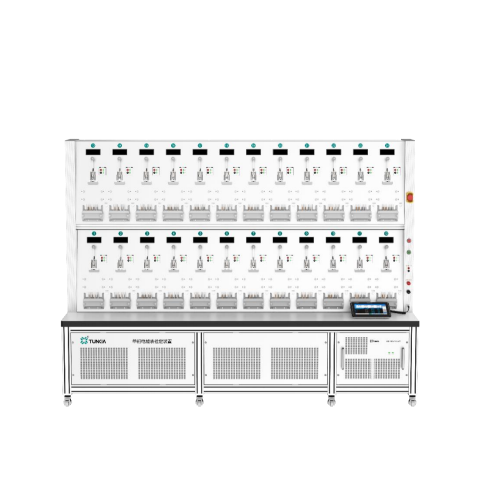

Tunkia TD3550 Single-phase Energy Meters Verification Device (Class 0.05, 12 positions)

- Basic Features:

Maximum output capacity: 264 V / 120 A.

Fundamental frequency: 45 Hz ~ 100 Hz.

Accuracy: class 0.05 or 0.1.

Minimum current output: As low as 1 mA.

Auto range: Automatic range switching and load matching.

Energy measurement: Positive / negative active and reactive energy.

Harmonic output: 2nd~63st @50Hz / 60Hz, harmonic content and phase are adjustable.

High order harmonic test: Built in high-order harmonic test schemes.

Complex waveform test: Built in common waveform scheme, like square-wave, cusp wave, sub-harmonics and odd-harmonic, etc.

DC and even harmonics test: Equipped with TD3410 half wave rectifier box.

Daily reckoning error test: Built in standard clock tester.

Automatic patrol inspection: Support automatic patrol inspection.

Connection: Equipped with special pressure gauge holder.

Communication: RS-485, pulse and photoelectric sampling port.

Multiple-position verification: Optional 6,12,16,24 positions.

Mobile control unit: LCD touch screen for value output.

Professional verification software: Support semi-automatic or fully automatic verification of the DUT / UUT, data management and certificate export. The software has the function of single point multiple tests, the test interval can be set, and the error curve can be drawn automatically.

- Optional Features:

Voltage/ Current line power consumption test: The voltage/ current line power consumption test can be completed by selecting the voltage power consumption test module.

Burden current fast change test: The user can set the duration of ton and toff, and the total time for a single test. The current switches at zero crossing and switches off and on within one nominal frequency period. The repetition time of single test was more than 4 hours.

AC Voltage dips and interruptions test: AC Voltage dips and interruptions test supporting voltage circuit power supply.

Standard meter: Optional conventional class 0.5 standard meter or harmonic standard meter.

Harmonic energy: Complete harmonic energy accuracy test and measurement accuracy test by selecting harmonic standard meter.

For detailed specifications, please refer to the Datasheet enclosed herewith.
