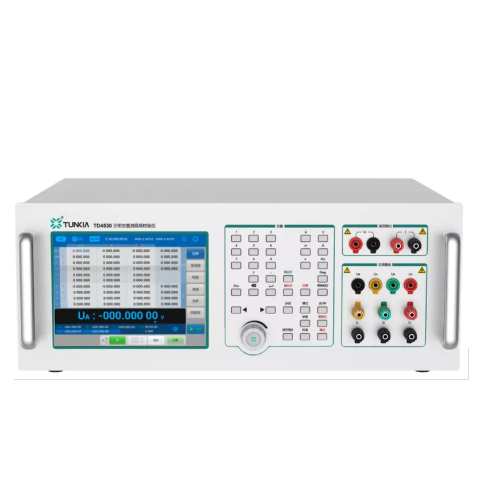

Tunkia TD4530 Three-Phase and DC Field Calibrator (Class 0.02, energy meter test function)
Manufacturer: Tunkia Model: TD4530 P/N: TD4530-200-E - Contact
3PH AC voltage output：1 V～660 V (UAB Max 1100 V)
3PH AC current output：20 mA～30 A
3PH voltage meter：6 V～456 V；
3PH current meter：0.1 A～6 A
Frequency：45 Hz～70 Hz
U-I phase：0°～360°;
DC voltage output：10 mV～1100 V
DC current output：0.1 mA～30 A
Accuracy class: 0.02, 0.05.
2nd~21st harmonic output
Transmitter test function
U4th AC voltage output function（option）
Energy meter test function（option）
Test software（option）
For detailed specifications, please refer to the Datasheet enclosed herewith.
