- Summary

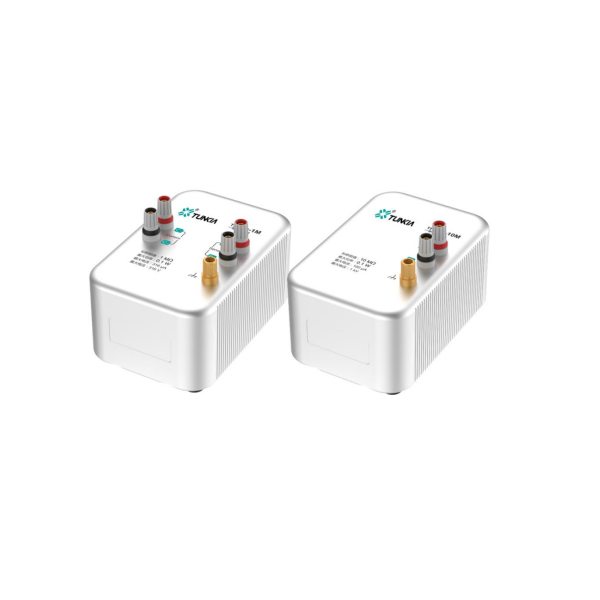

TH0320 is a series of precision standard resistors, suitable for measuring a wide range of precision current, it can also be applied for calibrating multifunction calibrators, high precision digital multi-meter, etc.
- Applications
Calibrate high precision resistance meter.
Calibrate standard resistance/precision resistance.
Establish high precision current measurement system.
- Technical Specification
Nominal Resistance @ 23°C: 100 Ω
Initial Deviation (±ppm): 5
Accuracy (±ppm): 2.5
Annual Stability (±ppm): 3
Temperature coefficient (±ppm/°C): 0.2
Wiring: 4W
Nominal Power (W): 0.1
Power Factor ( ±ppm/W ): 10
Maximum Current (A): 31.6
Maximum Voltage (V): 3.16
- General Specifications:
Temperature performance: Operating temperature: 18°C ~ 28°C; Storage temperature: -10°C~ 60°C;
Humidity performance: Working humidity :(40%-60%) R•H, no condensation; Storage humidity: <95% R•H, no condensation;
Weight: About 1 kg
Dimensions: 100 mm(W)×150 mm(D) ×70 mm(H) (excluding terminals and footpads)
