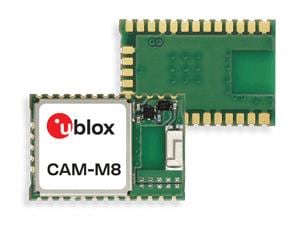

u-blox CAM-M8Q-0 GPS Modules u-blox M8 GNSS antenna module TCXO, SAW LCC, 9.6x14 mm, 500 pcs/reel
Manufacturer: u-blox Model: CAM-M8Q-0 - Contact
Frequency: 10 MHz
Dimensions: 14 mm x 9.6 mm x 2 mm
Interface Type: I2C, SPI, UART
Mounting Style: PCB Mount
Moisture Sensitive: Yes
Number of Channels: 72 Channel
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.7 V
Acquisition Sensitivity: - 160 dBm
Protocol - GPS, GLONASS: GPS, GLONASS, Galileo, BeiDou
Operating Supply Current: 71 mA
Operating Supply Voltage: 2.7 V to 3.6 V
Horizontal Position Accuracy: 4 m
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Time To First Fix - Cold Start: 45 s
