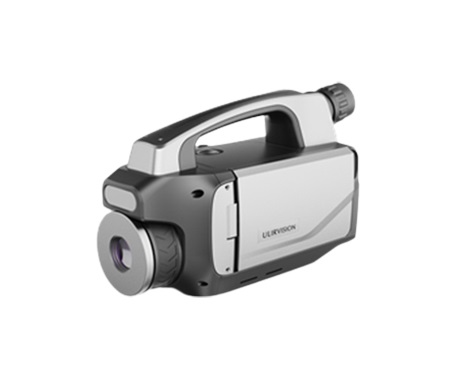

Ulirvision G330 VOCs Gas Optical Thermal Imaging Camera (320×256, gas detection)

Detector Data:

Type: High sensitivity cooled  detector

IR resolution: 320×256

Pixel pitch: 30μm

Spectral range: 3.1~3.5μm

NETD/Sensitivity: 10mK

Gas sensitivity: ≤0.4g/hr (CH4)

Lens:

FOV/Focal distance: 14° x 11.2° /39mm

Minimum Imaging distance: 0.5m

IFOV: 0.77mrad

Focus: MManual/Motor/Auto

Lens (optional): 24° x 19.2°/23mm (Optional)

Image Performance:

Display: LCD, HD 5.0", 1280x720, rotatable touch screen

Visual camera: 5 megapixel CMOS, autofocus, 1 LED fill light

Frequency: 50Hz

Digital zoom: 1X～8X continuous

Color palettes: 12 palettes (including iron, rainbow, white hot and black hot etc.)

Contrast/brightness: Auto/Manual

Measurement:

Temperature range: -20℃~+350℃

Temperature accuracy: 0~100℃ accuracy ±1℃ , -20℃~0℃ or ＞+100℃ accuracy ±2%

Image Storage:

Storage card: 128G

Video export: Card reader, USB, WiFi

Interfaces:

Power :Yes

SD card slot: Yes

Video output: HDMI

Audio output: Yes

Tripod: 1/4” -20

Communication Interface: WIFI, Bluetooth, USB

Power System:

Battery type: Rechargeable li-ion battery

Battery operation time: 3h

External power DC: 14V

Environment Parameters:

Operation temperature range: -20℃~+50℃

Storage temperature range: -30℃~+60℃

Humidity: ≤95%(Non-condense)

EMC: EN61000-6-4&EN61000-6-2、FCC47CFR Part15 class A、EN61000-4-8, L5

Vibration: 2G(IEC60068-2-6)

Shock: 25G(IEC60068-2-29)

Encapsulation: IP54(IEC60529)

Physical Data:

Size (L×W×H): ≤262mmX174mmX154mm

Weight: ≤ 2.8kg (with standard lens & battery)

Gas Detection: Methane, ethane, butane, propane, octane, pentane, heptane, hexane, ethylene, propylene, benzene, toluene, ethylbenzene, xylene, ethanol, methanol, isoprene, MEK, MIBK, 1-pentene

Packing:

Standard: Thermal imaging camera, 2 lithium batteries, battery charger, adapter, vehicle power converter, SD card, card reader, software CD, warranty card, certificate, headset, carrying case, video cable, user manual
