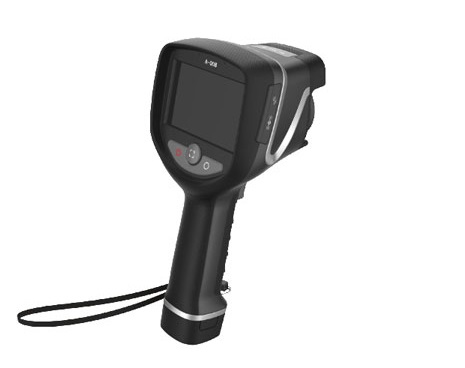

Ulirvision T5 Thermal Imaging Camera (384×288, -20~600℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 50mK

Lens:

FOV: 24°×18°

IFOV: 1.13mrad

Focus: Auto/Manual

Lens: Identification Automatic

Lens (optional): 45°×33°,12°×9°

Image Performance:

Display: 4,3” touch screen,LCD with 800×480 pixels

Visual camera: 5.0 mega pixel

Frequency: 50Hz/60Hz

Zoom: 1X～10X continuous

Color palletes: 12 palletes (including iron, rainbow, white hot and black hot etc.)

Contrast/brightness: Auto/Manual

Measurement:

Temperature range: -20℃～+600℃(can be extended to 1200℃)

Temperature accuracy: ±2℃/±2%(reading)

Spotmeter: 10 adjustable spots

Image Storage:

Storage media: 64G SD card, >128000 images

Storage mode: Auto/manual store image in frame

Laser Point: Grade/Type Class 2,1mW/635nmRed

Interfaces:

Power interface: Yes

SD card slot: Yes

WIFI: Yes

Bluetooth: Yes

Video output: HDMI

USB: USB 2.0

Power System:

Battery type: Lithium battery

Battery operation time: 4h continuous

External power DC: 10V～15V

Charging system: Intelligent charger or in camera(AC adapter or 12V car charger)

Power saving: Yes

Environment Parameters:

Operation temp range: -20℃～+50℃

Storage temp range: -40℃～+70℃

Humidity: ≤95%(Non-condense)

Shock: 2G(IEC60068-2-6)

Vibration: 25G(IEC60068-2-29)

Encapsulation: IP54(IEC60529)

Physical Data:

Size: 262mm×125mm×138mm

Weight: ≤950g(with battery and standard lens)

Packing:

Standard: Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
