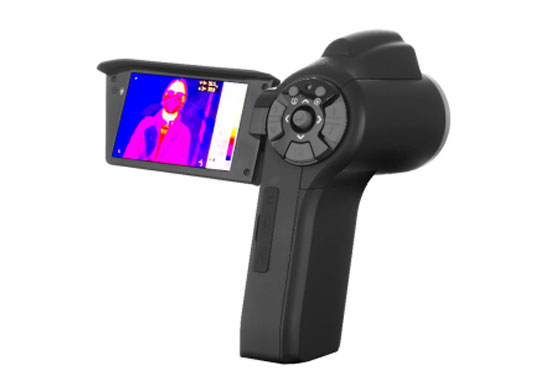

Ulirvision TI160-P1 Handheld Fever Screening Thermal Camera (384×288, 30~45℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 50mK

Lens Data:

FOV: 24°× 18°

Minimum imaging distance: 30cm

IFOV: 1.2mrad

Focus: Motor/Auto

Lens(optional): 45°×34°/15cm, 12°×9°/1m

Image Performance:

Display: High definition 3.2 ”color digital LCD display, rotatable,800×480

Visual camera: 3 megapixel CMOS, auto focus, 1 led fill light

Frequency: 50Hz/60Hz

Amplification: 1X～8X Continuous zoom

Color palettes: 12 options (including iron red, rainbow, black hot and white hot)

Contrast/Brightness: Auto/Manual

Measurement:

Temperature range: +30℃～+45℃

Measurement accuracy: ±0.5℃

Image storage:

Built-in memory: Yes, can store> 500 frames

Storage media: 8G, can store> 8000 frames

Storage method: Auto / manual single frame image

Laser indicator:

Laser classification: Second level

Laser power: 1mW

Laser wavelength: 635nm red

Power System:

Battery type: Lithium battery, rechargeable

Operating time: 3h continuous working (room temperature)

External power DC: 5V, ±5%

Charging system: Smart charger or local charger

Power saving: Yes

Environment Parameters:

Operating temperature range: +16℃～+32℃

Storage temperature range: -40℃～+70℃

Humidity: ≤95%(non-condensing)

Shock: 25G(IEC60068-2-29)

Vibration: 2G(IEC60068-2-6)

Encapsulation: IP54(IEC60529)

Physical data:

Size: 128mm×62mm×154mm

Weight: ≤0.4kg(With battery and standard lens)

Packing:

Standard: Thermal Imaging Camera(with standard lens), 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book

Optional accessories:  Laptop, SLR
