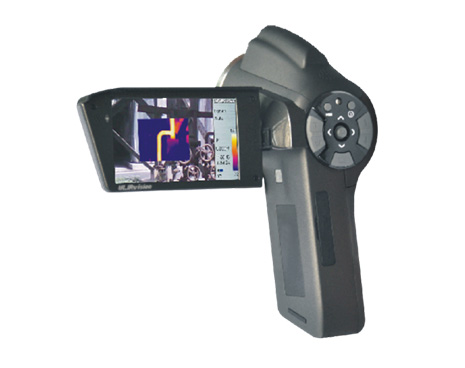

Ulirvision TI175 Thermal Imaging Cameras for Electricity & Industry Application (160×120, -20~250℃, 200~600℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 160×120

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 70mK

Lens:

FOV/Minimum imaging distance: 24°×18°/15cm

IFOV: 2.3mrad

Focus: Auto/Motor

Lens (Optional): 45°×34°/15cm、12°×9°/1m

Image Performance:

Display: 3.2”,270° tiltable LCD,800×480 pixels

Visual camera: 3.0 mega pixel

Frequency: 50Hz/60Hz

Zoom: 1X~4X continuous

Color palettes: 12 palettes(including iron, rainbow, white hot and black hot etc.)

Contrast/brightness: Auto/Manual

Measurement:

Temperature range: -20℃～+250℃ (Standard)

                             200℃～+600℃ (Optional)

Measurement accuracy: ±2℃/±2%(reading)

Spotmeter: 4 adjustable spots

Image Storage:

Storage type: Built-in flash, >700 images

        8G SD card, up to >11200 images

Storage mode: Auto/Manual store image in frame

Interfaces:

Power interface: Yes

SD card slot: Yes

Video output: CVBS

Audio output: Yes

USB: USE2.0, radiometric images、measurement data and voice are transferred to PC

Tripod: 1/4” -20

Power System:

Battery type: Lithium battery

Battery operation time: 2h continuous

External power DC: 5V±5%

Charging system: Intelligent charger or in camera

Power saving: Yes

Environment Parameters:

Operating temperature range: -20℃～+50℃

Storage temperature range: -40℃～+70℃

Humidity: ≤95% (Non-condense)

Vibration: 2G(IEC60068-2-6)

Shock: 25G(IEC60068-2-29)

Encapsulation: IP54(IEC60529)

Physical Data:

Size: 128mm×62mm×154mm

Weight: ≤0.4kg (with battery and standard lens)

Packing Standard: Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate

Option: Laptop, SLR camera
