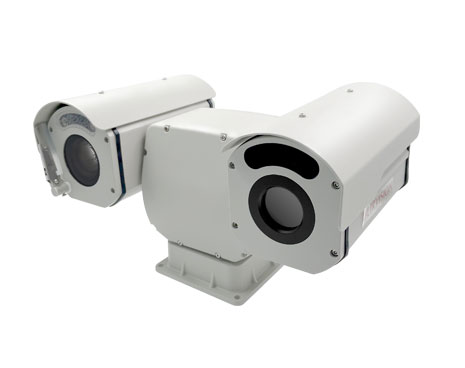

Ulirvision TI300PTZ-S Online Monitoring Thermal Imaging Pan&Tilt (384×288, -20~250℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 60mK

Infrared Lens:

Lens: Standard 15mm lens, 6.2mm optional

FOV: Standard lens 24°× 18°, Optional lens 55°× 43°

Minimum imaging distance: 50cm

IFOV: 1.13mrad, 2.74mrad

Focus: Motor, support auto focus

Infrared Measurement:

Temp range: -20℃~+250℃（Scalable to 650℃）

Measurement accuracy: ±2℃/±2%(Reading range), take the maximum

Temp measurement mode: Spot measure, box measure, highest temp

Measurement correction: Auto/Manual

Palette: Black hot, white hot, rainbow, iron red

Electronic zoom: 2X, 4X

CCD Video Camera:

Lens focal length: F4.3-129.0mm(more focal lengths are optional)

Resolution: 1920×1080, max support 2048x1536

Signal system: PAL/NTSC

Sensor type: 1/2.8‘’ Progressive Scan CMOS

Zoom: 30X optics, 12X digital

Minimum illumination: 0.05Lux

SNR: >50dB

Electronic image stabilization: ON/Off

Pan & Tilt:

Horizontal range: 0°~360°

Horizontal speed: 0.1°~40°/s

Vertical range: -90°~90°

Vertical speed: 0.1°~30°/s

Presetting amount: 99

Repositioning accuracy: ±0.05°

Interface:

Video output: Thermal image analog video, network video

Control: RS485

Protocol: PECLO-D

Baud rate: 2400-4800-9600bps auto recognitionNetwork

Type: 100Mbps

Network protocol: IEEE802.3

Connector interface: RJ-45

Communication protocol: IEC60807-5-104、 IEC61850

Power System: Working voltage: DC: 24V Power consumption: Static 10W; dynamic23W Environment Parameters: Operating temperature range: -25℃～+50℃ Storage temperature range: -40℃～+70℃ Encapsulation: IP66 Vibration protection: Horizontal 9G, vertical15G

Physical data:

Size: 428mm×255mm×233mm

Weight: 10kg

Packing Standard: Thermal Imaging Pan&Tilt, user manual, warranty card, packing box
