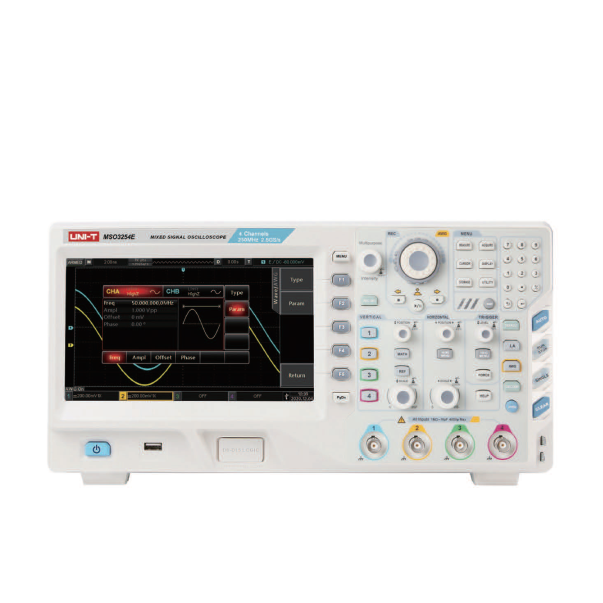

UNI-T MSO3254E Mixed Signal Oscilloscope (250Mhz, 4CH analog, 16CH digital)
Manufacturer: UNI-T Model: MSO3254E - Contact
Analog channels: 4
Digital channels: 16
Bandwidth: 250Mhz
Sampling rate (analog): 2.5GSa/s (Single channel), 1.25GSa/s (Dual channels)
Sampling rate (digital): 1.25GSa/s (Eight channels), 625MSa/s (Sixteen channels)
Waveform capture rate: ＞200000wfms/s
Memory depth: 70Mpts
Trigger types:
Standard: Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slop, Video, Code, RS-232/UART, 12C, SPI
Optional: USB, CAN
Auto measurements: 34 parameters in total
LCD: 8 inches TFT LCD
